T275 - Tilt-Up Anchor

Accessories | Tilt-Up | Pick Up Inserts

Dayton

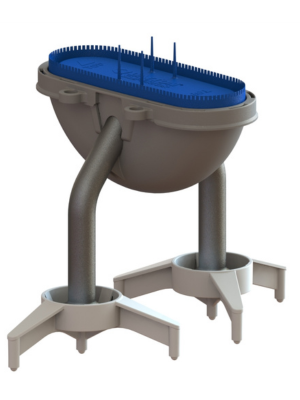

The Dayton Superior T275 Tilt-Up Anchor consists of a dual forged foot anchor assembled with a plastic recess plug and two plastic supports. The insert is a directional insert used parallel to the height of the panel. The T275 inserts are shipped assembled, ready to install and sized to the panel thickness.
  • T275 features easy to remove lid and a leave-in void former for fast and easy attachment of lifting hardware.
  • The T120 Lifting Hardware allows for quick attachment to the insert and remote ground release after the panel has been erected and braced.
  • Minimum edge distance is 15".
  • Maximum Safe Working Load of up to24,000 lbs with 2:1 safety factor in 2,500 psi  normal weight concrete.

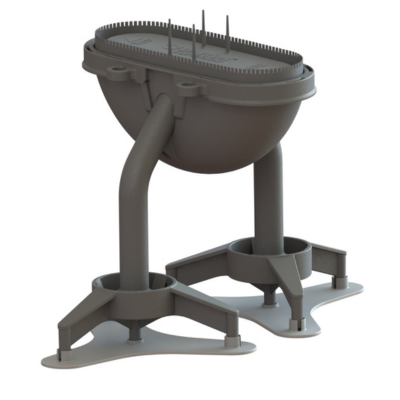

  • Can be used with Base Plates in insulated sandwich panels. Dayton Superior recommends using Recrete 5, Recrete 20, HD 25 or Perma Patch VO repair mortars for T275 insert patching.  The freeze-thaw test was conducted per ASTM C-666.
The T275 is installed in concrete tilt-up panels and used for lifting applications.
Product Code Packaging
146553 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 7.25" STRUCTURAL PANEL THICKNESS
146554 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 7.5" STRUCTURAL PANEL THICKNESS
146555 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 7.75" STRUCTURAL PANEL THICKNESS
146556 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 8" STRUCTURAL PANEL THICKNESS
146557 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 8.25" STRUCTURAL PANEL THICKNESS
146558 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 8.5" STRUCTURAL PANEL THICKNESS
146559 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 8.75" STRUCTURAL PANEL THICKNESS
146560 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 9" STRUCTURAL PANEL THICKNESS
146561 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 9.25" STRUCTURAL PANEL THICKNESS
146562 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 9.5" STRUCTURAL PANEL THICKNESS
146563 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 9.75" STRUCTURAL PANEL THICKNESS
146564 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 10" STRUCTURAL PANEL THICKNESS
146565 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 10.25" STRUCTURAL PANEL THICKNESS
146566 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 10.5" STRUCTURAL PANEL THICKNESS
146567 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 10.75" STRUCTURAL PANEL THICKNESS
146568 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 11" STRUCTURAL PANEL THICKNESS
146569 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 11.25" STRUCTURAL PANEL THICKNESS
146570 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 11.5" STRUCTURAL PANEL THICKNESS
146571 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 11.75" STRUCTURAL PANEL THICKNESS
146572 AVAILABLE EXCLUSIVELY THROUGH CERTIFIED DAYTON SUPERIOR TILT-UP DEALERS 12" STRUCTURAL PANEL THICKNESS
100037 FOR T275 LIFTING INSERTS BASE PLATE FOR T275
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
