T49 - Gyro Tilt Plus® Face Lift Insert

Accessories | Tilt-Up

Dayton

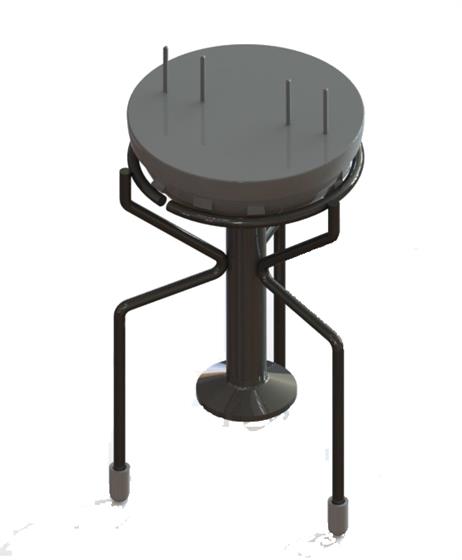

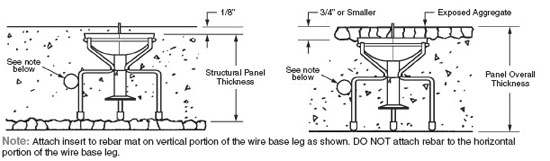

The Dayton Superior T49 Gyro Tilt Plus Face Lift Insert is a 3/4” diameter insert manufactured from high-quality steel. The hot-forged head is engaged by the system hardware. The insert assembly is complete with plastic void and plastic-protected wire base. The insert assembly is easily positioned and tied to the rebar mat and requires no special orientation.

Pricing Information/Unit Sizes

Product Code Packaging
103210 5" STRUCTURAL PANEL THICKNESS
103220 5-1/2" STRUCTURAL PANEL THICKNESS
103230 6" STRUCTURAL PANEL THICKNESS
103240 6-1/4" STRUCTURAL PANEL THICKNESS
103250 6-1/2" STRUCTURAL PANEL THICKNESS
103260 7" STRUCTURAL PANEL THICKNESS
103270 7-1/4" STRUCTURAL PANEL THICKNESS
103280 7-1/2" STRUCTURAL PANEL THICKNESS
103290 8" STRUCTURAL PANEL THICKNESS
103310 8-1/2" STRUCTURAL PANEL THICKNESS
103315 8-3/4" STRUCTURAL PANEL THICKNESS
103320 9" STRUCTURAL PANEL THICKNESS
103330 9-1/4" STRUCTURAL PANEL THICKNESS
103333 9-1/2" STRUCTURAL PANEL THICKNESS
103335 10" STRUCTURAL PANEL THICKNESS
103340 10-1/2" STRUCTURAL PANEL THICKNESS
103350 11" STRUCTURAL PANEL THICKNESS
120550 11-1/4" STRUCTURAL PANEL THICKNESS
103370 12" STRUCTURAL PANEL THICKNESS
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
