T41 - Ground Release Insert

Accessories | Tilt-Up | Ground Release Inserts

Dayton
The Ground Release II System is a unique method of tilting concrete tilt-up wall panels into position and allows the hardware to be easily released from the ground. Ladders are normally not required during the hardware release process which greatly increases worker safety and productivity.
Features of the T41 Ground Release II Insert Are:
  • Flexible Plastic Antenna folds over when screed passes, but springs back to indicate insert location.
  • Plastic Recess Plug creates a void for attaching the Ground Release II Lifting Hardware to the insert head.
  • The expendable plastic recess plug is easily removed from hardened concrete.
  • Directional Label indicates correct panel thickness and direction of plastic recess plug in relation to top and bottom of panel.
  • Ground Release II Anchor. This hot forged anchor permits rapid hardware attachment and allows smooth rotation of the hardware during the releasing operation.
  • Wire Frame is standard used with T41 inserts. This provides a stable base that is easy to insert to rebar cage.

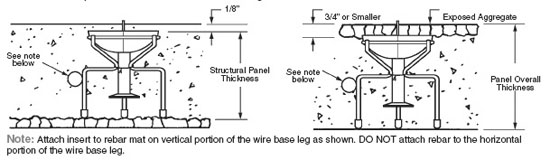

  • Ground Release II Inserts are shipped assembled, ready to use and are sized 1/8” less than panel thickness.
Product Code Packaging
60940 5" STRUCTURAL PANEL THICKNESS - WIRE BASE
60943 5-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60946 6" STRUCTURAL PANEL THICKNESS - WIRE BASE
61002 6-1/4" STRUCTURAL PANEL THICKNESS - WIRE BASE
60949 6-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60952 7" STRUCTURAL PANEL THICKNESS - WIRE BASE
61004 7-1/4" STRUCTURAL PANEL THICKNESS - WIRE BASE
60955 7-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60958 8" STRUCTURAL PANEL THICKNESS - WIRE BASE
61003 8-1/4" STRUCTURAL PANEL THICKNESS - WIRE BASE
60991 8-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
61007 8-3/4" STRUCTURAL PANEL THICKNESS - WIRE BASE
60992 9" STRUCTURAL PANEL THICKNESS - WIRE BASE
60989 9-1/4" STRUCTURAL PANEL THICKNESS - WIRE BASE
60993 9-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60994 10" STRUCTURAL PANEL THICKNESS - WIRE BASE
60995 10-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60996 11" STRUCTURAL PANEL THICKNESS - WIRE BASE
60997 11-1/2" STRUCTURAL PANEL THICKNESS - WIRE BASE
60998 12" STRUCTURAL PANEL THICKNESS - WIRE BASE
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.

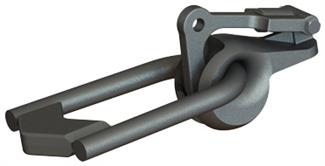

T43L Ground Release Hardware
