T14 - Tilt-Up Wall Braces

Accessories

Dayton

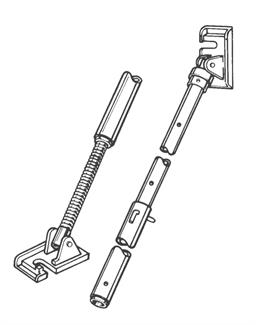

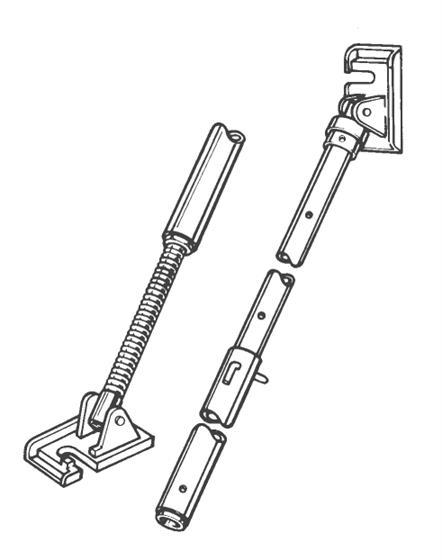

The Dayton Superior T14 Precast Wall Braces are all-steel, heavy-duty wall braces designed to quickly and easily align and brace tilt-up wall panels. Rough adjustment of the T14 braces is easily accomplished by telescoping the pipes to the nearest incremental hole. Final adjustment is then achieved by simply turning the brace. Dayton Superior wall braces are available in numerous sizes to provide a continuous range of panel heights of fifty feet or more. Refer to the table for additional information.

Notes
Notes
Notes: * Field assembly is required for B14 and B15 braces

Features/Details

Type

New Name

Part #

Description

Min. Length

Max Length

Ultimate Load (lbs)****

Brace Weight (lbs)

B0

BA0508R

100513

Short Pipe Brace

5'-0"

8'-0"

10,000

60

B1A

BA0814R

143785

Short Pipe Brace

8'-0"

14'-0"

9,750-5,625

87

B4

BA1423R

09940

Heavy Duty Regular Pipe Brace

14'-6"

23'-6"

9,750-2,525

130

B5***

BA2239R

09941

Heavy Duty Long Pipe Brace

22'-6"

30'-10"

8,962-2,025

208

B7

B17R13R

09554

Short Jumbo Brace

16'-3"

17'-9"

13,050

107

B8

B22R9R

09558

Jumbo Brace

21'-3"

22'-9"

9,750

130

B9

B22+5R7R

09034

Jumbo Brace with 5-0" Ext.

26'-3"

27'-9"

7,200

172

B10

B22+10R5R

09035

Jumbo Brace with 10'-0" Ext

31'-3"

32'-9"

5,400

193

B11

BA2540R

09726

Tru-Itt Brace

25'-6"

40'-0"

13,500

505

B12A

B32R13R

145449

Jumbo 5-1/2"

31'-3"

32'-9"

13,500

245

B13**

B27R18R

144051

Jumbo 5-1/2"

26'-3"

27'-9"

18,000

237

B14*

B32+10R7R

09042

B12 Jumbo Brace, 10'-0" Ext.

41'-3"

42'-9"

7,800

382

B15*

B32+20R5R

09044

B12 Jumbo Brace, 20'-0" Ext.

51'-3"

52'-9"

5,700

410

B16

BA32+5R12R

09556

B12 Jumbo Brace, 5'-0" Ext

36'-3"

37'-9"

12,000

360

B17S

B33R25R

100057

Jumbo Brace Fixed

32'-3"

33'-6"

25,000

489

B17A

B42R19R

100540

Super Brace

41'-3"

42'-6"

19,000

613



Notes:
* Field assembly is required for B14 and B15 braces. Fixed length allows for +/-9" of adjustment except B17A brace has +/-7.5" of adjustment and B18 Brace has 11.75" of adjustment on each end. Pipe Extensions: T15 for the B8 model and T20 for the B12 model.
** B13 is Made To Order brace.
*** B5 Brace Maximum Length is 39'-0", but a Knee Brace is required over 30'-10".
****Ultimate Load based on adequate brace to HGA or slab connection.
