T1 - Single Pickup Insert

Accessories

Dayton

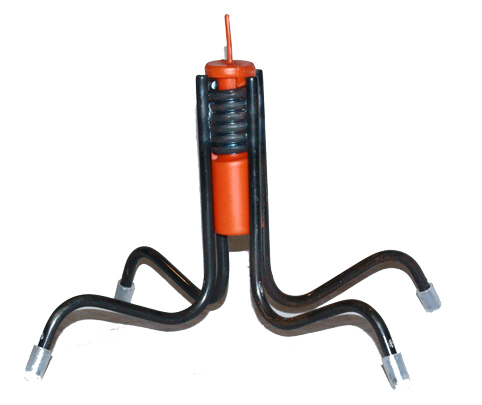

Dayton Superior T1 Single Pickup Inserts are available with plastic or stainless steel tips and with or without T21 Insert Locator Plugs installed. T1 inserts are designed for use with T12 or -26 Swivel Lifting Plates. Do not use T1 inserts as an edge or end pick-up insert. Height of insert is 3/8" less than the panel's structural thickness. Standard panel thickness is shown in the chart and other panel thickness is available on special order. Minimum spacing between inserts is twice the minimum corner distance.

Pricing Information/Unit Sizes

Product Code Packaging
48568 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 5" SLAB THICKNESS
48570 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 5-1/2" SLAB THICKNESS
48572 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 6" SLAB THICKNESS
48576 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 7" SLAB THICKNESS
48580 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 8" SLAB THICKNESS
48592 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/4" NOM DIA X 12" SLAB THICKNESS
48593 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/2" NOM DIA X 5" SLAB
48594 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/2" NOM DIA X 5-1/2" SLAB
48595 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/2" NOM DIA X 6" SLAB THICKNESS
48597 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/2" NOM DIA X 7" SLAB THICKNESS
48599 WITH PLASTIC TIPPED LEGS OR STAINLESS STEEL TIPS 1-1/2" NOM DIA X 8" SLAB THICKNESS
48500 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X UP TO 5-1/2" SLAB THICKNESS
48502 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X 5-1/2" SLAB THICKNESS
48504 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X 6" SLAB THICKNESS
48508 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X 7" SLAB THICKNESS
48510 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X 7-1/2" SLAB THICKNESS
48512 FOR PRECAST PLANT USE ONLY 3/4" NOM DIA X 8" SLAB THICKNESS
48536 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 5-1/2" SLAB THICKNESS
48538 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 6" SLAB THICKNESS
48540 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 6-1/2" SLAB THICKNESS
48542 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 7" SLAB THICKNESS
48543 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 7-1/4" SLAB THICKNESS
48544 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 7-1/2" SLAB THICKNESS
48546 FOR PRECAST PLANT USE ONLY 1" NOM DIA X 8" SLAB THICKNESS
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
