SBU - Slab Bolster Upper

Accessories | Rebar Supports | Metal Bar Supports

Dayton
Dayton Superior manufactures a complete line of rebar and/or mesh supports. All Dayton Superior rebar supports are manufactured to the recommendations or specifications of the Concrete Reinforcing Steel Institute (CRSI).

  • Some sizes are available with corrugated top wire to serve as a guide for spacing reinforcing steel.
  • Available in plain, galvanized, stainless steel or epoxy-coated.
  • 5-ft lengths standard. Other lengths available on special order.

To support one layer of steel above another and space them to required distance. May also be used to support steel on soft material form surface, such as carton forms or fill material.

Cover Height:
3/4" to 3", in 1/4" increments.
Product Code Packaging
143349 PLAIN, SHORT (CLASS 3) 1" X 15"
143350 PLAIN, SHORT (CLASS 3) 1" X 20"
143347 PLAIN, SHORT (CLASS 3) 1-1/2" X 15"
143348 PLAIN, SHORT (CLASS 3) 1-1/2" X 20"
143351 PLAIN, SHORT (CLASS 3) 2" X 15"
143352 PLAIN, SHORT (CLASS 3) 2" X 20"
70492 PLAIN, SHORT (CLASS 3) 3" X 10"
70494 PLAIN, SHORT (CLASS 3) 3" X 15"
70496 PLAIN, SHORT (CLASS 3) 3" X 20"

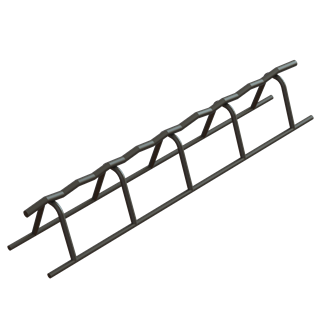

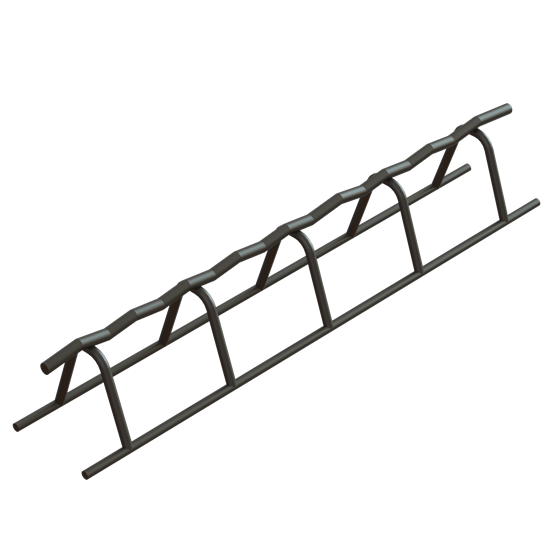

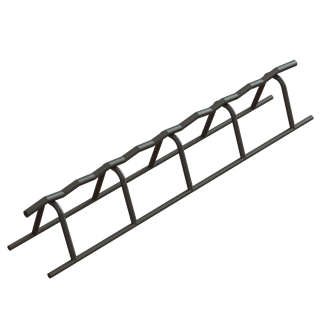

125116 PLAIN (CLASS 3) 3/4" X 5'
125117 PLAIN (CLASS 3) 1" X 5'
125118 PLAIN (CLASS 3) 1-1/4" X 5'
125119 PLAIN (CLASS 3) 1-1/2" X 5'
125120 PLAIN (CLASS 3) 1-3/4" X 5'
125121 PLAIN (CLASS 3) 2" X 5'
125122 PLAIN (CLASS 3) 2-1/4" X 5'
125123 PLAIN (CLASS 3) 2-1/2" X 5'
125124 PLAIN (CLASS 3) 2-3/4" X 5'
125125 PLAIN (CLASS 3) 3" X 5'
70660 PLAIN (CLASS 3) 3-1/2" X 5'
113180 PLAIN (CLASS 3) 4" X 5'
121250 PLAIN (CLASS 3) 4-1/2" X 5'
121251 PLAIN (CLASS 3) 5" X 5'

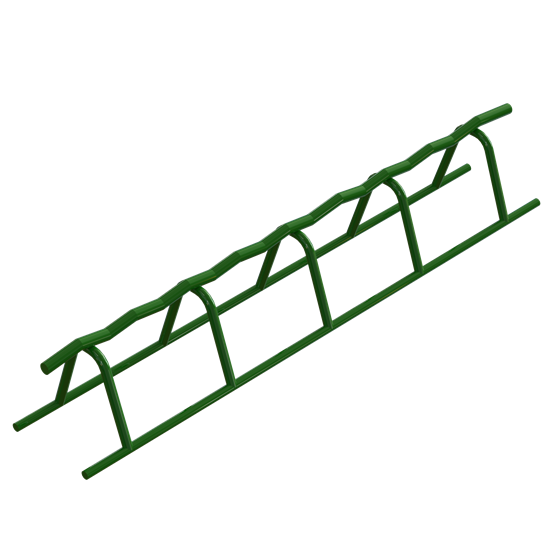

125126 EPOXY COATED (CLASS 1A) 3/4" X 5'
125127 EPOXY COATED (CLASS 1A) 1" X 5'
125128 EPOXY COATED (CLASS 1A) 1-1/4" X 5'
125129 EPOXY COATED (CLASS 1A) 1-1/2" X 5'
125130 EPOXY COATED (CLASS 1A) 1-3/4" X 5'
125131 EPOXY COATED (CLASS 1A) 2" X 5'
125132 EPOXY COATED (CLASS 1A) 2-1/4" X 5'
125133 EPOXY COATED (CLASS 1A) 2-1/2" X 5'
125134 EPOXY COATED (CLASS 1A) 2-3/4" X 5'
125135 EPOXY COATED (CLASS 1A) 3" X 5'
70508 GALVANIZED 3/4" X 5'
70518 GALVANIZED 1" X 5'
70528 GALVANIZED 1-1/4" X 5'
70538 GALVANIZED 1-1/2" X 5'
70548 GALVANIZED 1-3/4" X 5'
70558 GALVANIZED 2" X 5'
70568 GALVANIZED 2-1/4" X 5'
70578 GALVANIZED 2-1/2" X 5'
70588 GALVANIZED 2-3/4" X 5'
70598 GALVANIZED 3" X 5'

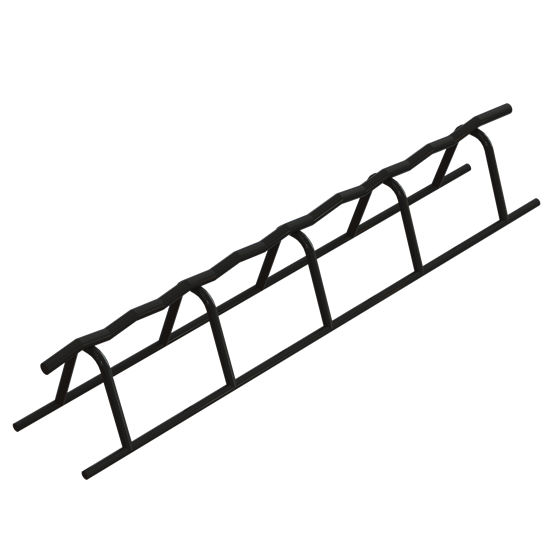

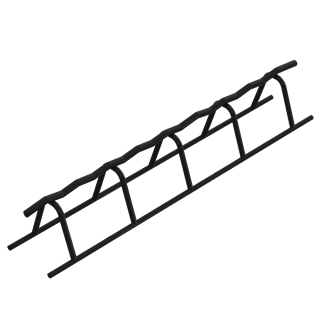

70559 PLASTIC DIPPED (CLASS 1) 2" X 5'
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
