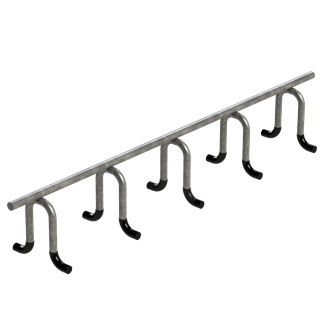

SB - Slab Bolster

Accessories

Dayton
Dayton Superior manufactures a complete line of rebar and/or mesh supports. All Dayton Superior rebar supports are manufactured to the recommendations or specifications of the Concrete Reinforcing Steel Institute (CRSI).
  • Corrugations on top wire are spaced on 1" centers to serve as guides for spacing reinforcing bars.

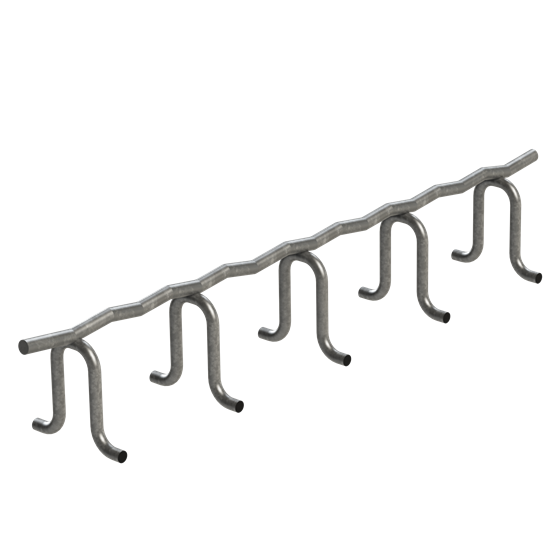

  • Available in plain, galvanized, plastic-protected or epoxy-coated finish

Application:
To support lower slab steel, on continuous 5-ft-long top wire. Also, available in 10-ft lengths on special order basis.

Cover Height:
3/4" to 3", in 1/4" increments.

Product Code Packaging

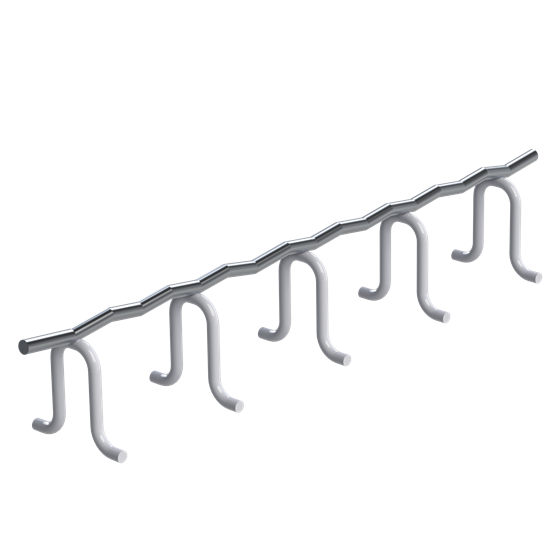

70100 PLAIN (CLASS 3) 3/4" X 5'
70200 PLAIN (CLASS 3) 1" X 5'
70300 PLAIN (CLASS 3) 1-1/4" X 5'
70400 PLAIN (CLASS 3) 1-1/2" X 5'
70410 PLAIN (CLASS 3) 1-3/4" X 5'
70420 PLAIN (CLASS 3) 2" X 5'
70430 PLAIN (CLASS 3) 2-1/4" X 5'
70440 PLAIN (CLASS 3) 2-1/2" X 5'
70450 PLAIN (CLASS 3) 2-3/4" X 5'
70460 PLAIN (CLASS 3) 3" X 5'
70106 PLASTIC TIPPED (CLASS 1) 3/4" X 5'
70206 PLASTIC TIPPED (CLASS 1) 1" X 5'
70306 PLASTIC TIPPED (CLASS 1) 1-1/4" X 5'
70406 PLASTIC TIPPED (CLASS 1) 1-1/2" X 5'
70416 PLASTIC TIPPED (CLASS 1) 1-3/4" X 5'
70426 PLASTIC TIPPED (CLASS 1) 2" X 5'
70436 PLASTIC TIPPED (CLASS 1) 2-1/4" X 5'
70446 PLASTIC TIPPED (CLASS 1) 2-1/2" X 5'
70456 PLASTIC TIPPED (CLASS 1) 2-3/4" X 5'
70466 PLASTIC TIPPED (CLASS 1) 3" X 5'

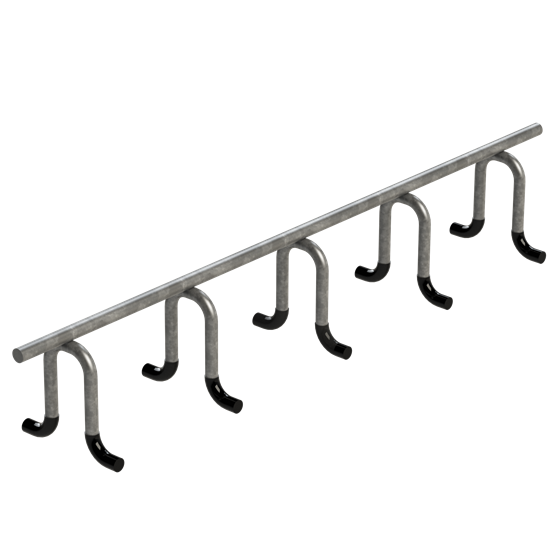

70209 GALVANIZED & TIPPED (CLASS 1) 1" X 5'
70309 GALVANIZED & TIPPED (CLASS 1) 1-1/4" X 5'
70409 GALVANIZED & TIPPED (CLASS 1) 1-1/2" X 5'
70419 GALVANIZED & TIPPED (CLASS 1) 1-3/4" X 5'
70429 GALVANIZED & TIPPED (CLASS 1) 2" X 5'
70439 GALVANIZED & TIPPED (CLASS 1) 2-1/4" X 5'
70449 GALVANIZED & TIPPED (CLASS 1) 2-1/2" X 5'
70459 GALVANIZED & TIPPED (CLASS 1) 2-3/4" X 5'
70469 GALVANIZED & TIPPED (CLASS 1) 3" X 5'

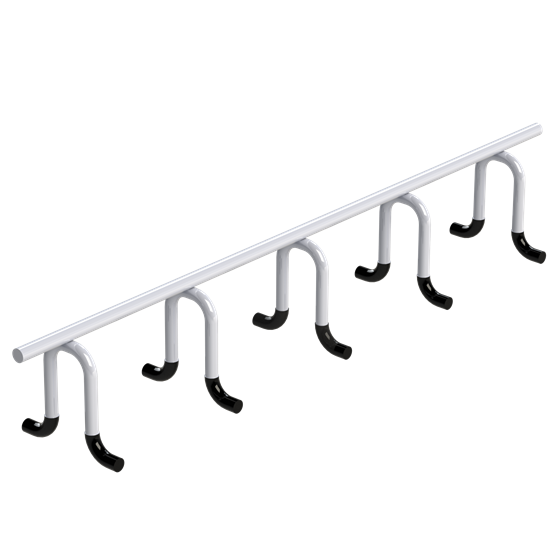

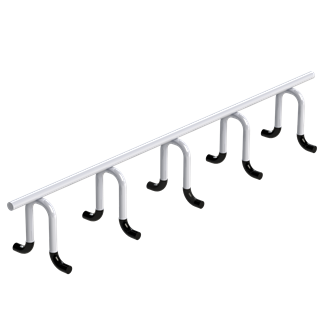

70103 PLASTIC DIPPED (CLASS 1) 3/4" X 5'
70203 PLASTIC DIPPED (CLASS 1) 1" X 5'
70303 PLASTIC DIPPED (CLASS 1) 1-1/4" X 5'
70403 PLASTIC DIPPED (CLASS 1) 1-1/2" X 5'
70413 PLASTIC DIPPED (CLASS 1) 1-3/4" X 5'
70423 PLASTIC DIPPED (CLASS 1) 2" X 5'
70433 PLASTIC DIPPED (CLASS 1) 2-1/4" X 5'
70443 PLASTIC DIPPED (CLASS 1) 2-1/2" X 5'
70453 PLASTIC DIPPED (CLASS 1) 2-3/4" X 5'
70463 PLASTIC DIPPED (CLASS 1) 3" X 5'

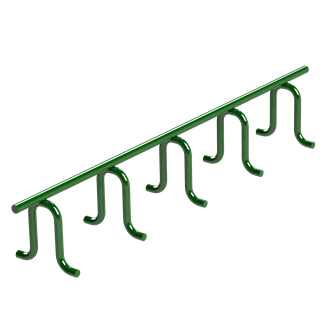

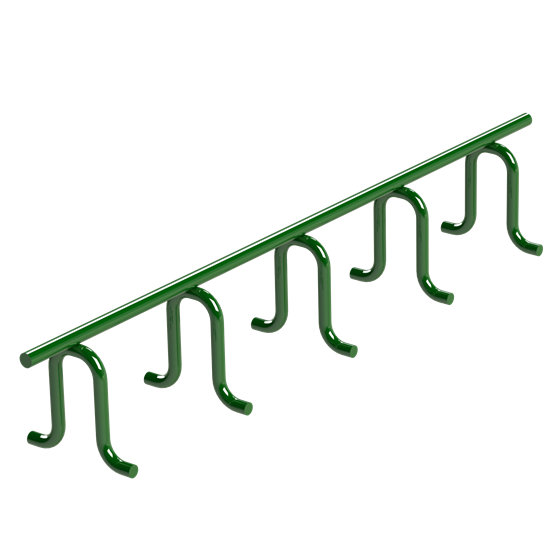

70107 EPOXY COATED (CLASS 1A) 3/4" X 5'
70207 EPOXY COATED (CLASS 1A) 1" X 5'
70307 EPOXY COATED (CLASS 1A) 1-1/4" X 5'
70407 EPOXY COATED (CLASS 1A) 1-1/2" X 5'
70417 EPOXY COATED (CLASS 1A) 1-3/4" X 5'
70427 EPOXY COATED (CLASS 1A) 2" X 5'
70437 EPOXY COATED (CLASS 1A) 2-1/4" X 5'
70447 EPOXY COATED (CLASS 1A) 2-1/2" X 5'
70457 EPOXY COATED (CLASS 1A) 2-3/4" X 5'
70467 EPOXY COATED (CLASS 1A) 3" X 5'

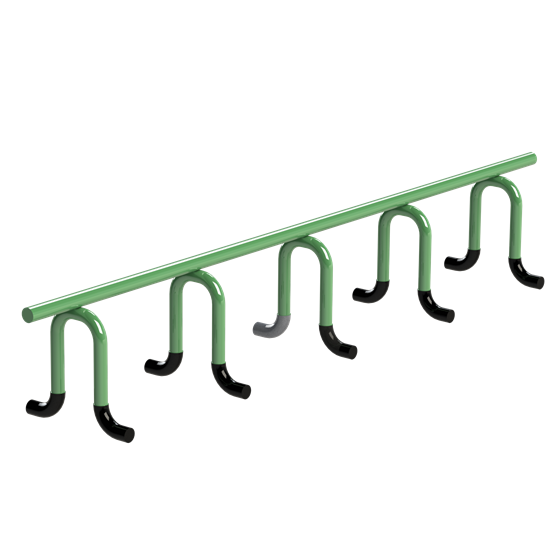

701073 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 3/4" X 5'
702073 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 1" X 5'
704073 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 1-1/2" X 5'
704273 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 2" X 5'
704473 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 2-1/2" X 5'
704673 EPOXY COATED & PLASTIC DIPPED (CLASS 1A) 3" X 5'
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
