PEZ - Aztec® E-Z Chair®

Accessories | Rebar Supports | Plastic Bar Supports

Dayton
Dayton Superior manufactures a complete line of rebar and/or mesh supports. All Dayton Superior rebar supports are manufactured to the recommendations or specifications of the Concrete Reinforcing Steel Institute (CRSI).
  • Standard "Concrete Gray" color (custom colors available - inquire)
  • Minimal surface contact
  • Designed for maximum aggregate flow and concrete consolidation
  • High load capacity
  • Fits up to #8 rebar
  • Does not straddle bottom rebar mat in double mat applications (for straddling applications, see Tower Chair or Straddle Chair)

Single Mat: Rebar or Wire Mesh, Bottom Layer Double Mat: Rebar or Wire Mesh, Tilt-Wall, Side-Form Spacer, On-Grade: when used with Sand Plate.

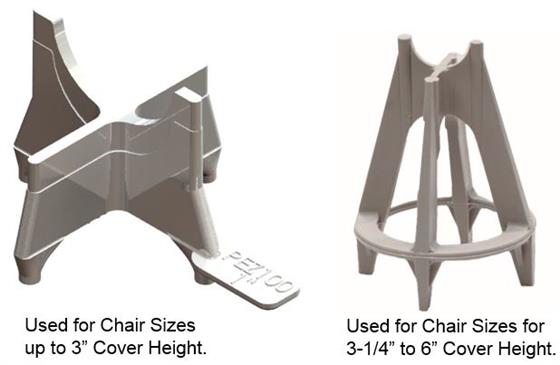

Cover Height:
From 3/4" to 6" (1/4" increments)
Product Code Packaging
127667 STANDARD 3/4" X #3 - 10MM TO #8 - 25MM
127651 STANDARD 1" X #3 - 10MM TO #8 - 25MM
127673 STANDARD 1-1/4" X #3 - 10MM TO #8 - 25MM
127660 STANDARD 1-1/2" X #3 - 10MM TO #8 - 25MM
127662 STANDARD 1-3/4" X #3 - 10MM TO #8 - 25MM
127668 STANDARD 2" X #3 - 10MM TO #8 - 25MM
127652 STANDARD 2-1/4" X #3 - 10MM TO #8 - 25MM
127674 STANDARD 2-1/2" X #3 - 10MM TO #8 - 25MM
127653 STANDARD 2-3/4" X #3 - 10MM TO #8 - 25MM
127663 STANDARD 3" X #3 - 10MM TO #8 - 25MM
127675 STANDARD 3-1/4" X #3 - 10MM TO #8 - 25MM
127669 STANDARD 3-1/2" X #3 - 10MM TO #8 - 25MM
127654 STANDARD 3-3/4" X #3 - 10MM TO #8 - 25MM
127676 STANDARD 4" X #3 - 10MM TO #8 - 25MM
127655 STANDARD 4-1/4" X #3 - 10MM TO #8 - 25MM
127664 STANDARD 4-1/2" X #3 - 10MM TO #8 - 25MM
127677 STANDARD 4-3/4" X #3 - 10MM TO #8 - 25MM
127670 STANDARD 5" X #3 - 10MM TO #8 - 25MM
127656 STANDARD 5-1/4" X #3 - 10MM TO #8 - 25MM
127678 STANDARD 5-1/2" X #3 - 10MM TO #8 - 25MM
127657 STANDARD 5-3/4" X #3 - 10MM TO #8 - 25MM
127665 STANDARD 6" X #3 - 10MM TO #8 - 25MM
121258 HEAVY DUTY 3/4" X #3 - 10MM TO #8 - 25MM
121259 HEAVY DUTY 1" X #3 - 10MM TO #8 - 25MM
121260 HEAVY DUTY 1-1/4" X #3 - 10MM TO #8 - 25MM
121261 HEAVY DUTY 1-1/2" X #3 - 10MM TO #8 - 25MM
121262 HEAVY DUTY 1-3/4" X #3 - 10MM TO #8 - 25MM
121263 HEAVY DUTY 2" X #3 - 10MM TO #8 - 25MM
121264 HEAVY DUTY 2-1/4" X #3 - 10MM TO #8 - 25MM
121265 HEAVY DUTY 2-1/2" X #3 - 10MM TO #8 - 25MM
121266 HEAVY DUTY 2-3/4" X #3 - 10MM TO #8 - 25MM
121267 HEAVY DUTY 3" X #3 - 10MM TO #8 - 25MM
121268 HEAVY DUTY 3-1/4" X #3 - 10MM TO #8 - 25MM
121269 HEAVY DUTY 3-1/2" X #3 - 10MM TO #8 - 25MM
121270 HEAVY DUTY 3-3/4" X #3 - 10MM TO #8 - 25MM
121271 HEAVY DUTY 4" X #3 - 10MM TO #8 - 25MM
121272 HEAVY DUTY 4-1/4" X #3 - 10MM TO #8 - 25MM
121273 HEAVY DUTY 4-1/2" X #3 - 10MM TO #8 - 25MM
121274 HEAVY DUTY 4-3/4" X #3 - 10MM TO #8 - 25MM
121275 HEAVY DUTY 5" X #3 - 10MM TO #8 - 25MM
121276 HEAVY DUTY 5-1/4" X #3 - 10MM TO #8 - 25MM
121277 HEAVY DUTY 5-1/2" X #3 - 10MM TO #8 - 25MM
121278 HEAVY DUTY 5-3/4" X #3 - 10MM TO #8 - 25MM
121279 HEAVY DUTY 6" X #3 - 10MM TO #8 - 25MM
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
