P92 - Fleet-Lift™ Erection Anchor

Accessories

Dayton

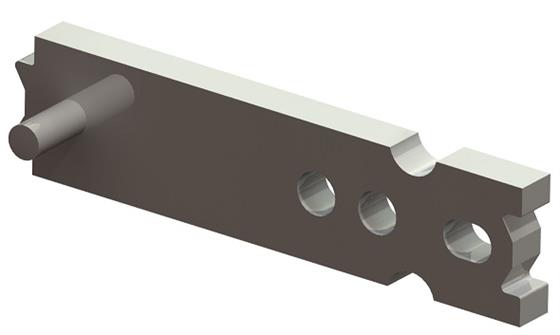

P92 Fleet-Lift Erection Anchors are specifically designed for horizontal to vertical edge lifts and handling of thin-walled precast concrete elements. Two steel protrusions or “ears” on the head of the anchor provide protection against concrete spalling. These protrusions restrict the ring clutch rotation during lateral pulls. As a result, lateral forces are transmitted directly to the edge of the anchor instead of the concrete. The body of the Erection Anchor is shaped to allow full reinforcement for secure support and spall-free rotation. P-92 Erection Anchors are available plain or hot-dipped galvanized.
