P81 - Shimpak

Accessories

Dayton
Dayton Superior shimming material is an engineered multipolymer plastic specifically formulated for use by the construction industry. This material provides an optimum combination of physical properties for a shim in applications where high compressive strength and load bearing are important. It facilitates the placement of tilt-up structural, and other architectural members.

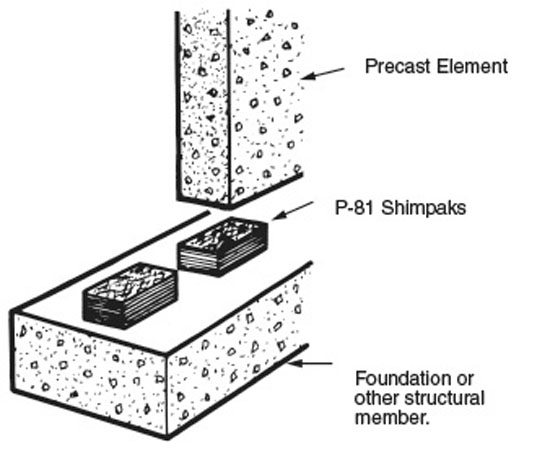

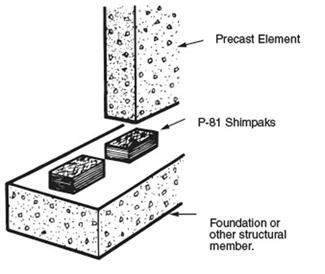

  • These pre-assembled packages of heavy duty shims are designed for large precast units.
  • Shimpaks are very advantageous in precise placing and leveling of large panels.
  • Their use eliminates time-consuming correction of elastomeric drift and makes alignment safer and easier.

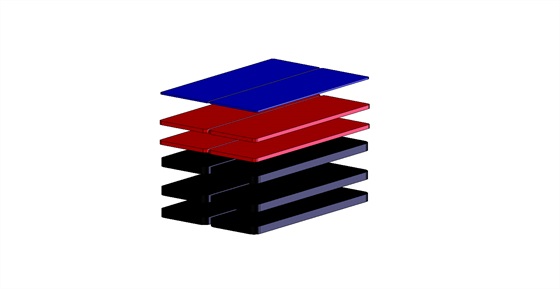

  • Popular sizes are 4" x 6" and 4" x 4" packs which are 1-1/16" thick. Shimpaks are made up of shims in the following thickness sequence: one 1/16", three 1/4" and two 1/8". Tilt-up panels can be levelled within 1/16" by removing or adding one or more elements.
  • Shimpaks are held together with a resilient band for easy removal or addition of elements.
  • Alternate sizes available on request.

Pricing Information/Unit Sizes

Product Code Packaging
62030 AVAILABLE IN FULL CARTONS ONLY 1-1/16" X 4" X 6"
62033 AVAILABLE IN FULL CARTONS ONLY 1-1/16" X 4" X 4"
62025 AVAILABLE IN FULL CARTONS ONLY 1-1/16" X 3" X 3"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
