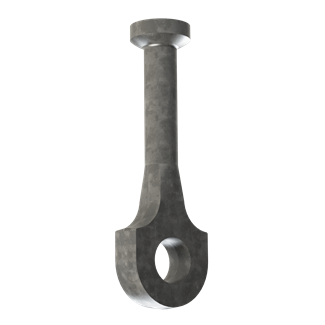

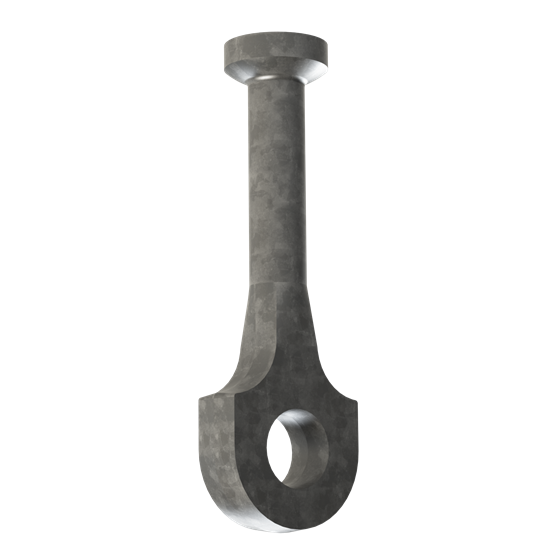

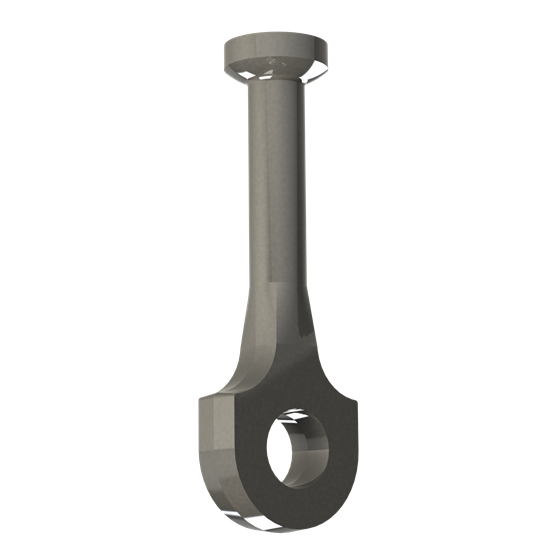

P53 - Swift Lift® Eye Anchor for Edge

Accessories

Dayton
The Dayton Superior Swift Lift Eye Anchor (P53) is similar to the P52 anchor but has an eye at the foot to accept P60 Tension Bars. The P53 anchor is used primarily in thin sections, thin panels of lightweight concrete or shapes that must be handled at concrete compressive strengths below 2,000 psi. P53 anchors are available in 1, 2, 4, 8 and 20 T capacities and each has its load rating embossed on the head. NOTE: P60 Tension Bar must be used with this anchor to achieve loads.

Pricing Information/Unit Sizes

Product Code Packaging
60680 PLAIN 1 TON SWL 3/8" X 2-5/8"
60683 PLAIN 2 TON SWL 9/16" X 3-1/2"
60686 PLAIN 4 TON SWL 3/4" X 4-3/4"
60689 PLAIN 8 TON SWL 1-3/32" X 7-1/8"
60692 PLAIN 20 TON SWL 1-1/2" X 9-5/8"
126860 HOT-DIPPED GALV. 2 TON SWL 9/16" X 3-1/2"
60687 HOT-DIPPED GALV. 4 TON SWL 3/4" X 4-3/4"
126657 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 7-1/8"
126861 HOT-DIPPED GALV. 20 TON SWL 1-1/2" X 9-5/8"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
