P52 - Swift Lift® Edge Lift Anchor

Accessories

Dayton

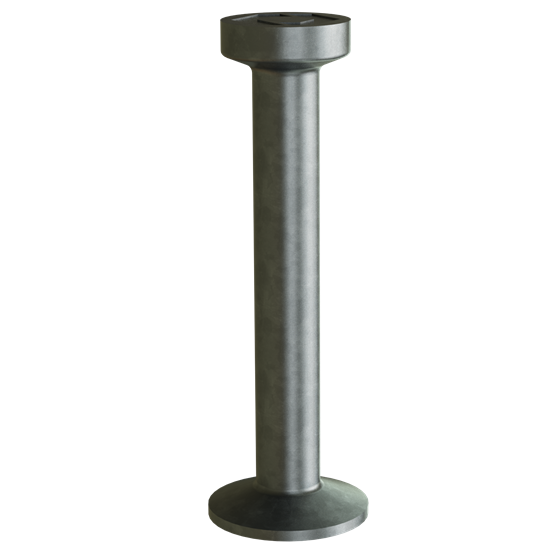

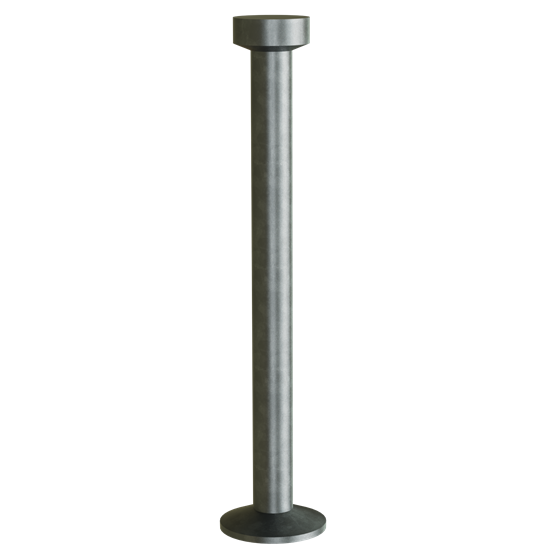

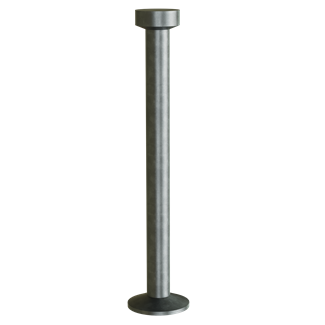

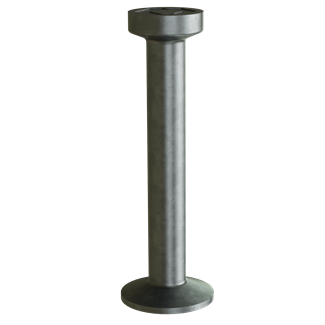

The Dayton Superior P52 Swift Lift Anchor is a hot-forged insert available in 9/16" and 3/4" shaft sizes. The spherical head engages with the P51 hardware to lift and handle precast panels. The standard lengths available for the 9/16" unit are 6-3/4" and 11". The standard lengths available for the 3/4" unit are 9-1/2" and 19". Other lengths are available on special order.

Pricing Information/Unit Sizes

Product Code Packaging
60590 PLAIN 1 TON SWL 3/8" X 2-5/8"
60593 PLAIN 1 TON SWL 3/8" X 3-3/8"
60596 PLAIN 1 TON SWL 3/8" X 4-3/4"
60599 PLAIN 1 TON SWL 3/8" X 8"
60602 PLAIN 1 TON SWL 3/8" X 9-1/2"
60605 PLAIN 2 TON SWL 9/16" X 2-3/4"
60608 PLAIN 2 TON SWL 9/16" X 3-3/8"
60611 PLAIN 2 TON SWL 9/16" X 5-1/2"
60614 PLAIN 2 TON SWL 9/16" X 6"
60617 PLAIN 2 TON SWL 9/16" X 6-3/4"
60620 PLAIN 2 TON SWL 9/16" X 11"
60623 PLAIN 4 TON SWL 3/4" X 3-3/4"
60626 PLAIN 4 TON SWL 3/4" X 4-1/4"
60629 PLAIN 4 TON SWL 3/4" X 4-3/4"
60632 PLAIN 4 TON SWL 3/4" X 5-1/2"
60633 PLAIN 4 TON SWL 3/4" X 5-3/4"
60635 PLAIN 4 TON SWL 3/4" X 7-1/8"
60638 PLAIN 4 TON SWL 3/4" X 9-1/2"
60641 PLAIN 4 TON SWL 3/4" X 14"
60644 PLAIN 4 TON SWL 3/4" X 19"
60645 PLAIN 8 TON SWL 1-3/32" X 4-3/4"
121988 PLAIN 8 TON SWL 1-3/32" X 5-1/4"
60647 PLAIN 8 TON SWL 1-3/32" X 6-3/4"
60648 PLAIN 8 TON SWL 1-3/32" X 10"
60650 PLAIN 8 TON SWL 1-3/32" X 13-3/8"
60652 PLAIN 8 TON SWL 1-3/32" X 26-3/4"
60653 PLAIN 20 TON SWL 1-1/2" X 10"
60657 PLAIN 20 TON SWL 1-1/2" X 19-3/4"
123775 HOT-DIPPED GALV. 1 TON SWL 3/8" X 2-5/8"
126872 HOT-DIPPED GALV. 1 TON SWL 3/8" X 3-3/8"
126871 HOT-DIPPED GALV. 1 TON SWL 3/8" X 4-3/4"
60660 HOT-DIPPED GALV. 2 TON SWL 9/16" X 2-3/4"
60663 HOT-DIPPED GALV. 2 TON SWL 9/16" X 3-3/8"
60666 HOT-DIPPED GALV. 2 TON SWL 9/16" X 5-1/2"
126867 HOT-DIPPED GALV. 2 TON SWL 9/16" X 6"
126866 HOT-DIPPED GALV. 2 TON SWL 9/16" X 6-3/4"
60669 HOT-DIPPED GALV. 2 TON SWL 9/16" X 11"
60670 HOT-DIPPED GALV. 4 TON SWL 3/4" X 3-3/4"
60671 HOT-DIPPED GALV. 4 TON SWL 3/4" X 4-1/4"
60673 HOT-DIPPED GALV. 4 TON SWL 3/4" X 4-3/4"
60668 HOT-DIPPED GALV. 4 TON SWL 3/4" X 5-1/2"
60676 HOT-DIPPED GALV. 4 TON SWL 3/4" X 7-1/8"
60675 HOT-DIPPED GALV. 4 TON SWL 3/4" X 9-1/2"
126864 HOT-DIPPED GALV. 4 TON SWL 3/4" X 19"
126863 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 4-3/4"
126972 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 5-1/4"
60677 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 6-3/4"
124506 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 10"
60679 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 13-3/8"
126801 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 26-3/4"
124586 HOT-DIPPED GALV. 20 TON SWL 1-1/2" X 10"
126868 HOT-DIPPED GALV. 20 TON SWL 1-1/2" X 19-3/4"
146321 PLAIN 1 TON SWL 3/8" X 3-3/4"
146323 PLAIN 1 TON SWL 3/8" X 4-3/4"
146325 PLAIN 1 TON SWL 3/8" X 8"
146327 PLAIN 1 TON SWL 3/8" X 9.5"
129112 PLAIN 2 TON SWL 9/16" X 3-3/4"
146333 PLAIN 2 TON SWL 9/16" X 4-3/4"
129113 PLAIN 2 TON SWL 9/16" X 5-1/2"
129114 PLAIN 2 TON SWL 9/16" X 6"
129115 PLAIN 2 TON SWL 9/16" X 6-3/4"
129116 PLAIN 2 TON SWL 9/16" X 11"
128835 PLAIN 4 TON SWL 3/4" X 3-3/4"
128836 PLAIN 4 TON SWL 3/4" X 4-1/4"
129117 PLAIN 4 TON SWL 3/4" X 4-3/4"
129118 PLAIN 4 TON SWL 3/4" X 5-1/2"
129119 PLAIN 4 TON SWL 3/4" X 7-1/8"
129120 PLAIN 4 TON SWL 3/4" X 9-1/2"
129121 PLAIN 4 TON SWL 3/4" X 14"
129122 PLAIN 4 TON SWL 3/4" X 19"
129123 PLAIN 8 TON SWL 1-3/32" X 4-3/4"
129124 PLAIN 8 TON SWL 1-3/32" X 5-1/4"
129125 PLAIN 8 TON SWL 1-3/32" X 6-3/4"
146337 PLAIN 8 TON SWL 1-3/32" X 4-3/4"
129126 PLAIN 8 TON SWL 1-3/32" X 10"
129127 PLAIN 8 TON SWL 1-3/32" X 13-3/8"
129128 PLAIN 8 TON SWL 1-3/32" X 26-3/4"
129129 PLAIN 20 TON SWL 1-1/2" X 10"
129130 PLAIN 20 TON SWL 1-1/2" X 19-3/4"
146322 HOT-DIPPED GALV. 1 TON SWL 3/8" X 3-3/8"
146324 HOT-DIPPED GALV. 1 TON SWL 3/8" X 3-3/8"
146326 HOT-DIPPED GALV. 1 TON SWL 3/8" X 8"
146328 HOT-DIPPED GALV. 1 TON SWL 3/8" X 9.5"
129131 HOT-DIPPED GALV. 2 TON SWL 9/16" X 3-3/4"
146334 HOT-DIPPED GALV. 2 TON SWL 9/16" X 4-3/4"
129132 HOT-DIPPED GALV. 2 TON SWL 9/16" X 5-1/2"
129133 HOT-DIPPED GALV. 2 TON SWL 9/16" X 6"
129134 HOT-DIPPED GALV. 2 TON SWL 9/16" X 6-3/4"
129135 HOT-DIPPED GALV. 2 TON SWL 9/16" X 11"
129136 HOT-DIPPED GALV. 4 TON SWL 3/4" X 3-3/4"
129137 HOT-DIPPED GALV. 4 TON SWL 3/4" X 4-1/4"
129138 HOT-DIPPED GALV. 4 TON SWL 3/4" X 4-3/4"
129139 HOT-DIPPED GALV. 4 TON SWL 3/4" X 5-1/2"
129140 HOT-DIPPED GALV. 4 TON SWL 3/4" X 7-1/8"
129141 HOT-DIPPED GALV. 4 TON SWL 3/4" X 9-1/2"
129142 HOT-DIPPED GALV. 4 TON SWL 3/4" X 14"
129143 HOT-DIPPED GALV. 4 TON SWL 3/4" X 19"
129144 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 4-3/4"
129145 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 5-1/4"
129146 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 6-3/4"
129147 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 10"
129148 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 13-3/8"
129149 HOT-DIPPED GALV. 8 TON SWL 1-3/32" X 26-3/4"
129150 HOT-DIPPED GALV. 20 TON SWL 1-1/2" X 10"
129151 HOT-DIPPED GALV. 20 TON SWL 1-1/2" X 19-3/4"
123300 CANADA ONLY 4 TON SWL 1-1/2"; CANADA ONLY
60621 CANADA ONLY 4 TON SWL 3"; CANADA ONLY
60622 CANADA ONLY 4 TON SWL 3-1/2"; CANADA ONLY
60639 CANADA ONLY 4 TON SWL 4"; CANADA ONLY
60628 CANADA ONLY 4 TON SWL 4-1/2"; CANADA ONLY
60631 CANADA ONLY 4 TON SWL 5-1/4"; CANADA ONLY
60633 CANADA ONLY 4 TON SWL 5-1/3"; CANADA ONLY
60637 CANADA ONLY 4 TON SWL 6"; CANADA ONLY
60634 CANADA ONLY 4 TON SWL 6-1/4"; CANADA ONLY
123056 CANADA ONLY 4 TON SWL 7-3/4"; CANADA ONLY
121018 CANADA ONLY 8 TON SWL 5-3/4"; CANADA ONLY
120959 CANADA ONLY 8 TON SWL 6-1/4"; CANADA ONLY
60646 CANADA ONLY 8 TON SWL 7-1/8"; CANADA ONLY
122485 CANADA ONLY 8 TON SWL 7-3/4"; CANADA ONLY
60649 CANADA ONLY 8 TON SWL 5-3/4"; CANADA ONLY
146316 CANADA ONLY 8 TON SWL 8-1/4"; CANADA ONLY
123932 CANADA ONLY - MAGAZINE ANCHORS 4 TON SWL 90MM; CANADA ONLY
123934 CANADA ONLY - MAGAZINE ANCHORS 4 TON SWL 100MM; CANADA ONLY
123936 CANADA ONLY - MAGAZINE ANCHORS
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
