G14 - Heavy Duty Screed Holders

Accessories

Dayton

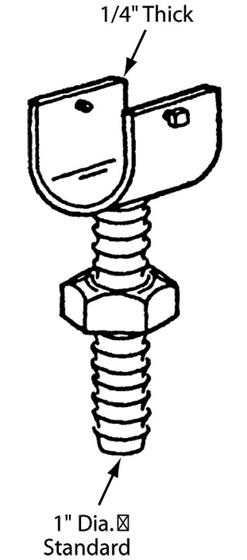

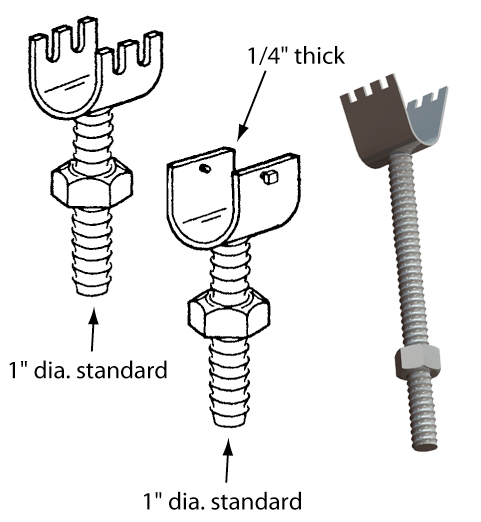

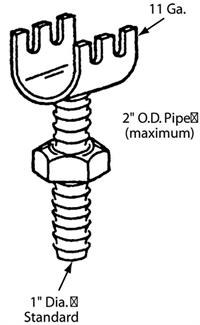

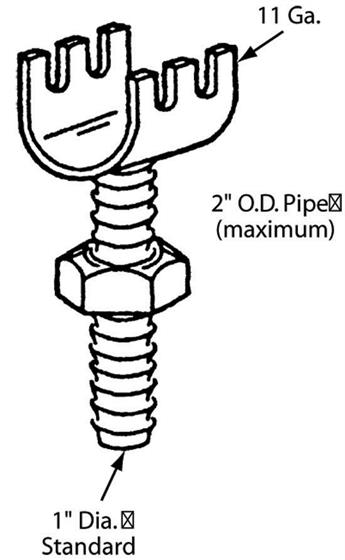

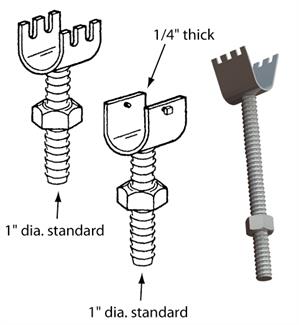

Dayton Superior G14 Heavy Duty Screed Holders consist of a rolled steel plate welded to a length of 1" diameter coil rod. The G14 screed holder is used with a free-fit screed base to support screed pipe of various sizes. The "open style" is fabricated from grade 11 gauge steel and is limited to 2" O.D., or smaller, pipe. The "Closed style" is fabricated from 1/4" steel and is fitted with two 3/8" diameter set screws. The closed style holder can accommodate screed pipe up to 3" O.D.
Both styles are available in 4-1/4", 6-3/4" and 9-3/4" lengths with one Coil Nut included with each holder.
Product Code Packaging
48050 ONE B13 COIL NUT INCLUDED NO. 4 OPEN 4-1/4"
48052 ONE B13 COIL NUT INCLUDED NO. 5 OPEN 6-3/4"
48054 ONE B13 COIL NUT INCLUDED NO. 6 OPEN 9-3/4"
48062 ONE B13 COIL NUT INCLUDED NO. 5A CLOSED 6-3/4"
48064 ONE B13 COIL NUT INCLUDED NO. 6A CLOSED 9-3/4"
127903 ONE B13 COIL NUT INCLUDED NO. 4A CLOSED 4-1/4"
127905 ONE B13 COIL NUT INCLUDED NO. 5A CLOSED 6-3/4"
127906 ONE B13 COIL NUT INCLUDED NO. 5A CLOSED 6-3/4"
127907 ONE B13 COIL NUT INCLUDED NO. 6A CLOSED 9-3/4"
127908 ONE B13 COIL NUT INCLUDED NO. 6A CLOSED 9-3/4"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
