F62 - Flared Thin Slab Ferrule Insert

Accessories | Precast | Precast Anchors & Inserts

Dayton

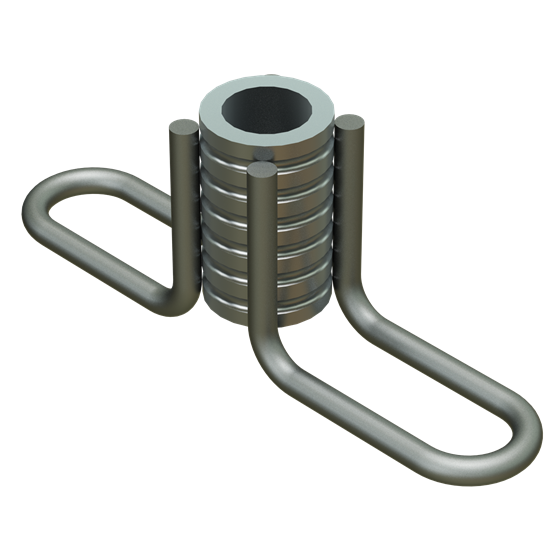

The F62 Flared Thin Slab Ferrule Insert was designed for use in thin precast concrete elements or for conditions where a longer insert cannot be used. This insert is closed at the back end of the ferrule to keep concrete from getting into the threads. The ferrule will accept only NC threaded bolts of appropriate diameters.

Pricing Information/Unit Sizes

Product Code Packaging
48920 WING NUT TYPE - NC THREADS 1/2" DIA PLAIN X 4-1/2"
48922 WING NUT TYPE - NC THREADS 5/8" DIA PLAIN X 4-7/8"
48924 WING NUT TYPE - NC THREADS 3/4" DIA PLAIN X 4-7/8"
48926 WING NUT TYPE - NC THREADS 3/4" DIA PLAIN X 4-7/8"
48928 WING NUT TYPE - NC THREADS 1" DIA PLAIN X 5-1/8"
48930 WING NUT TYPE - NC THREADS 1" DIA PLAIN X 5-1/8"
48921 WING NUT TYPE - NC THREADS 1/2" DIA ELECTRO GALV. X 4-1/2"
48923 WING NUT TYPE - NC THREADS 5/8" DIA ELECTRO GALV. X 4-7/8"
48925 WING NUT TYPE - NC THREADS 3/4" DIA ELECTRO GALV. X 4-7/8"
48927 WING NUT TYPE - NC THREADS 3/4" DIA ELECTRO GALV. X 4-7/8"
48929 WING NUT TYPE - NC THREADS 1" DIA ELECTRO GALV. X 5-1/8"
48931 WING NUT TYPE - NC THREADS 1" DIA ELECTRO GALV. X 5-1/8"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
