F44 - Thin Slab Ferrule Insert

Accessories

Dayton

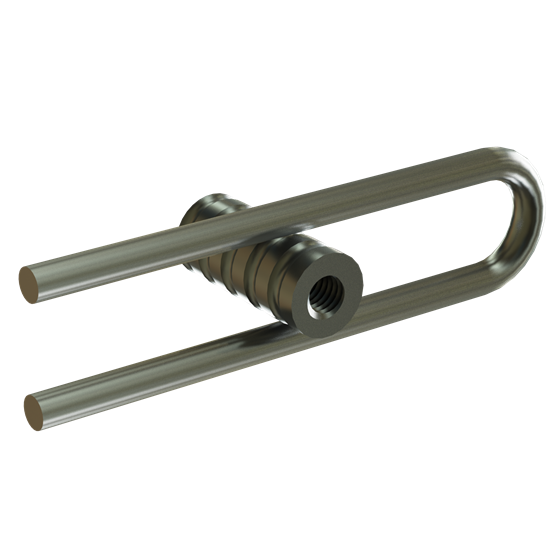

The Dayton Superior F44 Thin Slab Ferrule Insert is a specially designed insert for use where the depth of embedment is extremely limited and where there is a requirement for limited capacity in both tension and shear. Depending on region, the F44 will be furnished with either two struts welded to the bottom of the ferrule or one strut looped around the ferrule (see sketch). Minimum spacing between inserts is twice the minimum corner distance.

Pricing Information/Unit Sizes

Product Code Packaging
49679 PLAIN 1/4" PLAIN 20NC
49680 PLAIN 3/8" PLAIN 16NC
49681 PLAIN 1/2" PLAIN 13NC
49682 PLAIN 5/8" PLAIN 11NC
49683 PLAIN 3/4" PLAIN 10NC
49685 PLAIN 7/8" PLAIN 9NC
49684 PLAIN 1" PLAIN 8NC
49660 ELECTRO GALV 1/4" ELECTRO GALV. 20NC
49662 ELECTRO GALV 1/2" ELECTRO GALV. 13NC
49664 ELECTRO GALV 3/4" ELECTRO GALV. 10NC
49666 ELECTRO GALV 1" ELECTRO GALV. 8NC
49688 STAINLESS STEEL 1/4" STAINLESS STEEL 20NC
49689 STAINLESS STEEL 3/8" STAINLESS STEEL 16NC
49690 STAINLESS STEEL 1/2" STAINLESS STEEL 13NC
49692 STAINLESS STEEL 3/4" STAINLESS STEEL 10NC
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
