D9A - Taper Tie and D19 - D/R Thread

Forming | Sym-Ply | Ties

Dayton

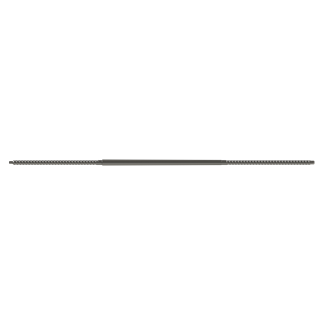

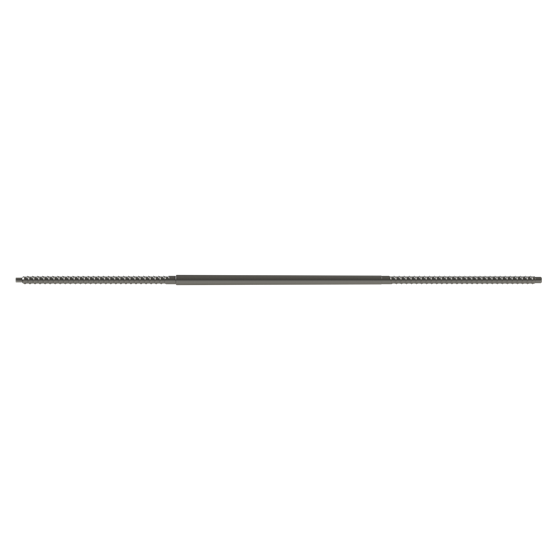

Dayton Superior D/R Thread Bar Taper Ties (D9A) are used when specifications require or permit complete removal of the form tie from the concrete. The D9A features the Thread Bar's 2-1/2 threads per inch for rapid installation and stripping.
Standard 5/8" and 7/8" diameter taper ties are available in the sizes shown in the handbook chart.
Product Code Packaging
123765 5/8" THR X 16" L (TAPER LENGTH = 13/16" TO 5/8") OA LENGTH = 41"
123766 5/8" THR X 24" L (TAPER LENGTH = 13/16" TO 5/8") OA LENGTH = 49"
123953 5/8" THR X 40" L (TAPER LENGTH = 13/16" TO 5/8") OA LENGTH = 65"
125090 5/8" THR X 16" L (TAPER LENGTH = 1" TO 5/8") OA LENGTH = 41"
123510 5/8" THR X 24" L (TAPER LENGTH = 1" TO 5/8") OA LENGTH = 49"
123511 5/8" THR X 32" L (TAPER LENGTH = 1" TO 5/8") OA LENGTH = 57"
123514 7/8" THR X 32" L (TAPER LENGTH = 1-1/4" TO 7/8") OA LENGTH = 58"
145555 7/8" THR X 19.5" L (TAPER LENGTH = 1-1/4" TO 1") OA LENGTH = 37"
145556 7/8" THR X 29.5" L (TAPER LENGTH = 1-1/4" TO 1") OA LENGTH = 47"
145557 7/8" THR X 39.5" L (TAPER LENGTH = 1-1/4" TO 1") OA LENGTH = 57"
145558 7/8" THR X 49.5" L (TAPER LENGTH = 1-1/4" TO 1") OA LENGTH = 67"
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
