D9 and D19 - Taper Tie - D/R Thread

Forming | Sym-Ply | Ties

Dayton

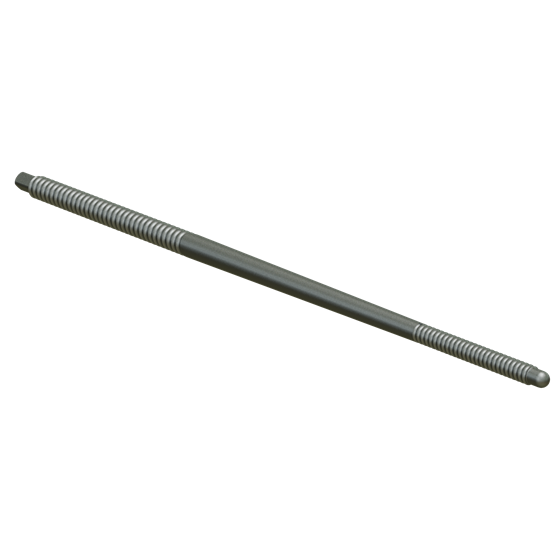

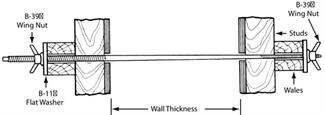

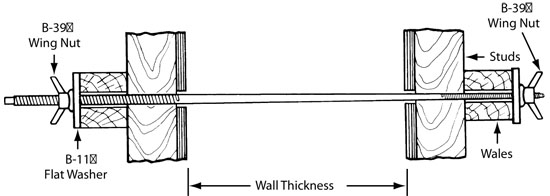

Dayton Superior D9 Taper Ties are used where specifications require or permit complete removal of the form tie from the concrete. A complete taper tie assembly consists of one taper tie, two flat washers and two appropriate nut devices. For wrench turning purposes, taper ties are manufactured with a square end. On the opposite end (smaller end) is designed with a protruding nose to prevent thread damage during the removal operation. Coating the taper tie with waterproof grease will facilitate taper tie removal.
Standard taper ties are manufactured with a taper up to 30" in length. Longer tapers are available on special order.

Standard taper ties are supplied with coil thread in the diameters and lengths shown in the chart. Other lengths are available on special order.
Product Code Packaging
60504 3/4" TO 1/2" DIA. (7,500 LBS SWL) 3/4" TO 1/2" DIA X 34"; SWL=7,500 LBS
60508 3/4" TO 1/2" DIA. (7,500 LBS SWL) 3/4" TO 1/2" DIA X 43"; SWL=7,500 LBS
60512 3/4" TO 1/2" DIA. (7,500 LBS SWL) 3/4" TO 1/2" DIA X 52"; SWL=7,500 LBS
60520 1" TO 3/4" DIA. (18,000 LBS SWL) 1" TO 3/4" DIA X 30"; SWL=18,000 LBS
60521 1" TO 3/4" DIA. (18,000 LBS SWL) 1" TO 3/4" DIA X 36"; SWL=18,000 LBS
60522 1" TO 3/4" DIA. (18,000 LBS SWL) 1" TO 3/4" DIA X 42"; SWL=18,000 LBS
60523 1" TO 3/4" DIA. (18,000 LBS SWL) 1" TO 3/4" DIA X 48"; SWL=18,000 LBS
60524 1" TO 3/4" DIA. (18,000 LBS SWL) 1" TO 3/4" DIA X 60"; SWL=18,000 LBS
60541 1-1/4" TO 1" DIA. (34,000 LBS SWL) 1-1/4" TO 1" DIA X 36"; SWL=34,000 LBS
60542 1-1/4" TO 1" DIA. (34,000 LBS SWL) 1-1/4" TO 1" DIA X 42"; SWL=34,000 LBS
60543 1-1/4" TO 1" DIA. (34,000 LBS SWL) 1-1/4" TO 1" DIA X 48"; SWL=34,000 LBS
60544 1-1/4" TO 1" DIA. (34,000 LBS SWL) 1-1/4" TO 1" DIA X 60"; SWL=34,000 LBS
60545 1-1/4" TO 1" DIA. (34,000 LBS SWL) 1-1/4" TO 1" DIA X 72"; SWL=34,000 LBS
60560 1-1/2" TO 1-1/4" DIA. (50,000 LBS SWL) 1-1/2" TO 1-1/4" DIA X 30"; SWL=50,000 LBS
60562 1-1/2" TO 1-1/4" DIA. (50,000 LBS SWL) 1-1/2" TO 1-1/4" DIA X 42"; SWL=50,000 LBS
60563 1-1/2" TO 1-1/4" DIA. (50,000 LBS SWL) 1-1/2" TO 1-1/4" DIA X 48"; SWL=50,000 LBS
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
