C60 - Pres-Steel Hanger

Accessories | Bridge Deck

Dayton

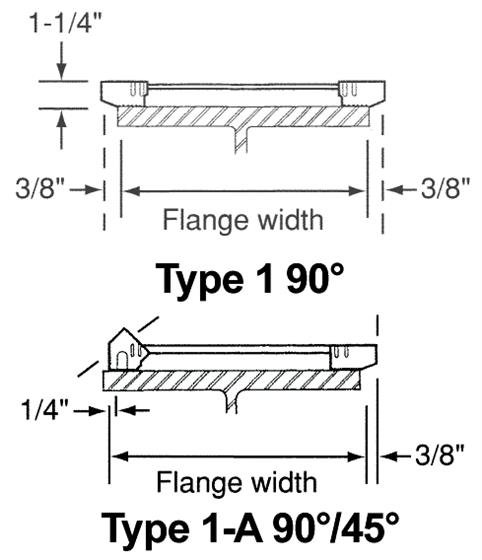

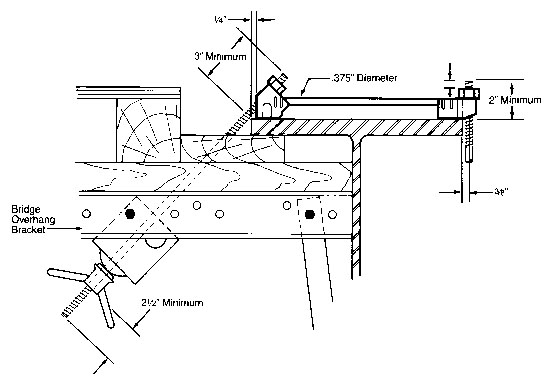

The C60 45° Pres-Steel Hanger-Type 1-A consists of a 1/2" 90° end section and a 1/2" 45° end section welded to a single wire strut. The hanger allows installation and adjustment from the top of the formwork and works equally well on steel or precast concrete beams. The 90° end supports interior forming while the 45° end supports the overhang bracket on the exterior side of the beam.

Use

This hanger is also available with the addition of a supplemental 1/2" 90° end section to facilitate support of certain job site fabricated overhang forming. Safe working load of the supplemental end is 750 pounds with an approximate 2:1 safety factor.
