C24 - Pres-Steel Half Hanger

Accessories | Bridge Deck

Dayton
C24 45° Pres-Steel Half Hangers are manufactured with a single 1/2" end section welded to a jogged wire strut and are used where conditions prevent the use of standard double-ended hangers.
Standard Style AC hangers measure 12" from the centerline of the bolt to the end of the strut. This style hanger is designed to be welded to the rebar stirrups of precast concrete bridge beams.
Standard Style AS hangers measure 6" from the centerline of the bolt to the end of the strut. These hangers are designed to be welded to the top surface of steel girders.
Lengths other than standard are available. Contact Dayton Superior for additional information.

Standard units are 8" long overall with one (1) Stirrup Clip. Stirrup Clips are available for #3 through #8 rebar sizes. Other overall lengths, additional Stirrup Clips and Coil Nuts are available on special order.
Product Code Packaging

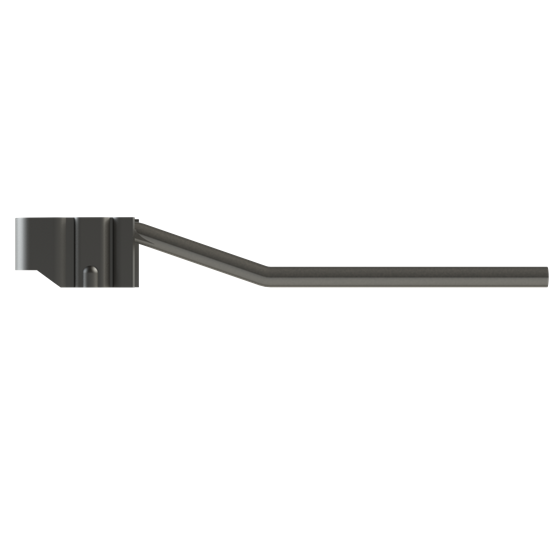

43190 TYPE C HALF HANGERS FOR CONCRETE BEAMS 1-C 9" X 90 DEG

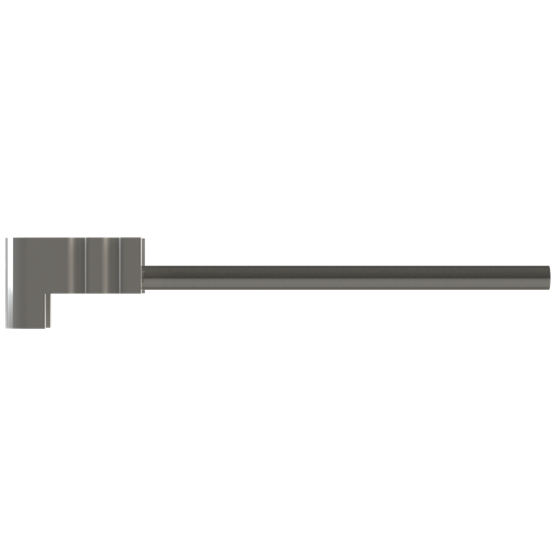

43198 TYPE C HALF HANGERS FOR CONCRETE BEAMS 4-C 9" X 90 DEG

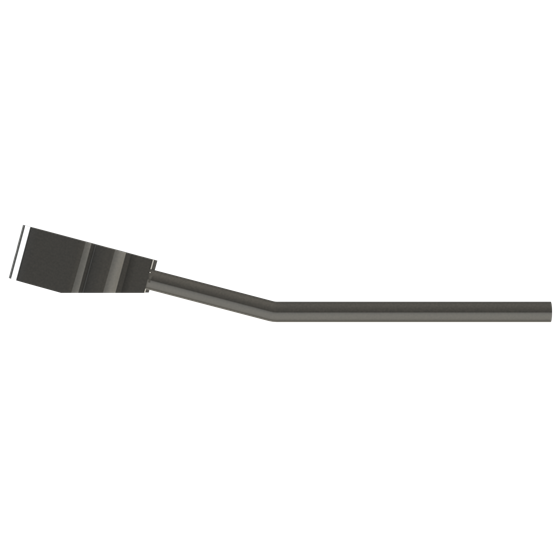

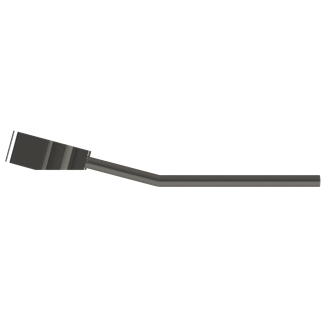

43201 TYPE C HALF HANGERS FOR CONCRETE BEAMS 8-C 9" X 15 DEG

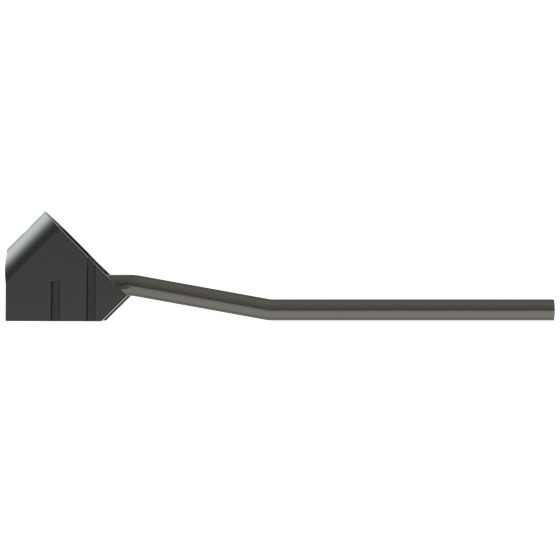

43192 TYPE C HALF HANGERS FOR CONCRETE BEAMS 1-AC 12" X 45 DEG

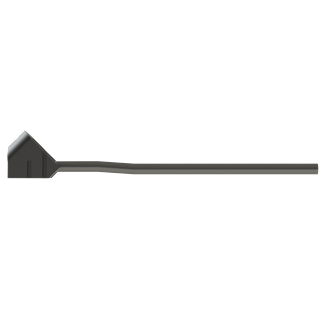

43212 TYPE C HALF HANGERS FOR CONCRETE BEAMS 4-AC 12" X 45 DEG

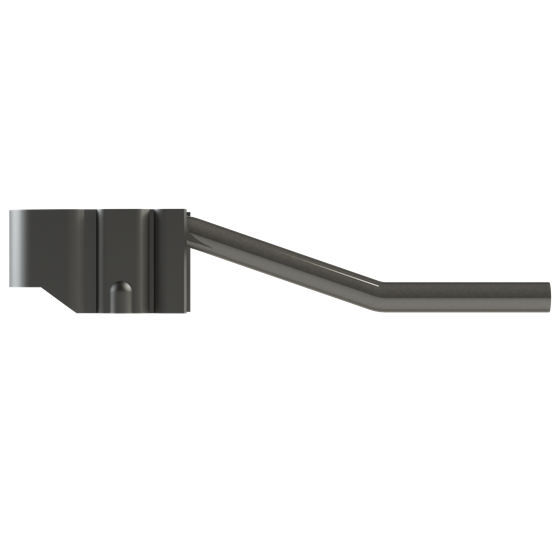

43210 TYPE S HALF HANGERS FOR STEEL BEAMS 1-S 6" X 90 DEG

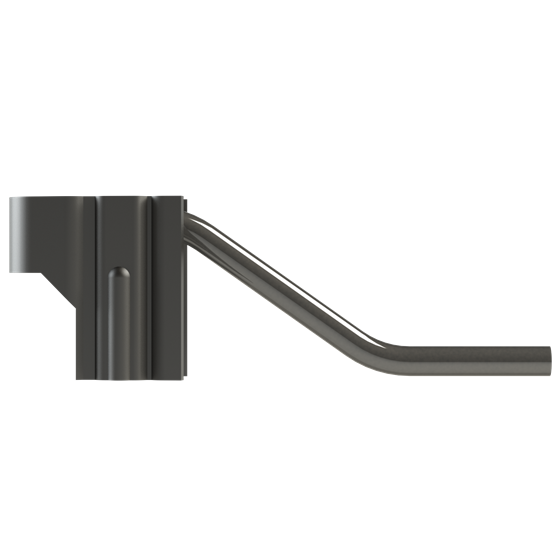

43216 TYPE S HALF HANGERS FOR STEEL BEAMS 2-S 6" X 90 DEG

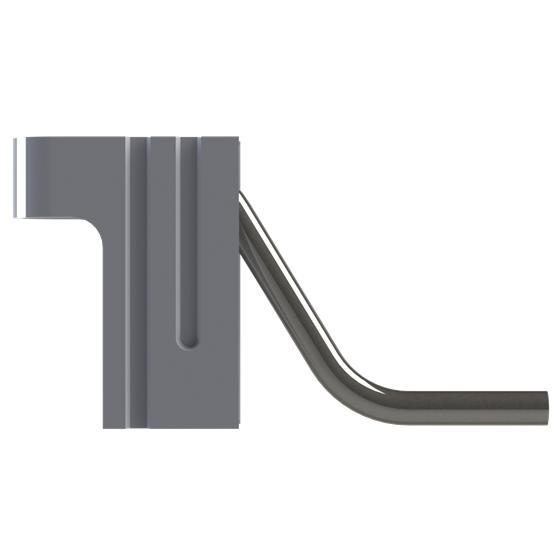

43220 TYPE S HALF HANGERS FOR STEEL BEAMS 3-S 6" X 90 DEG

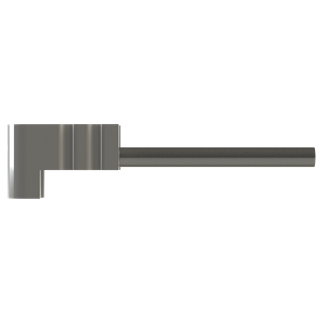

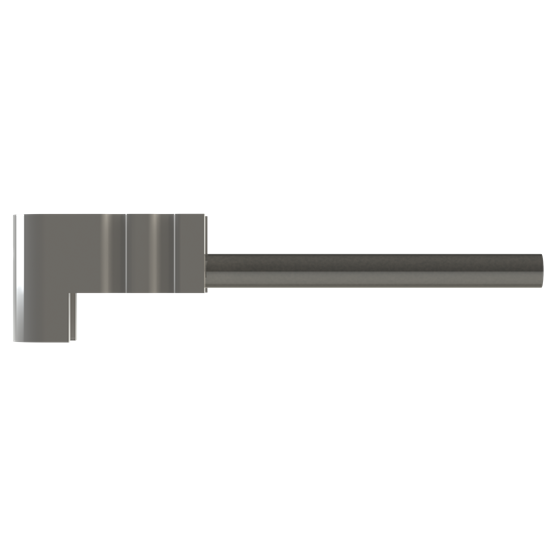

43222 TYPE S HALF HANGERS FOR STEEL BEAMS 4-S 6" X 90 DEG

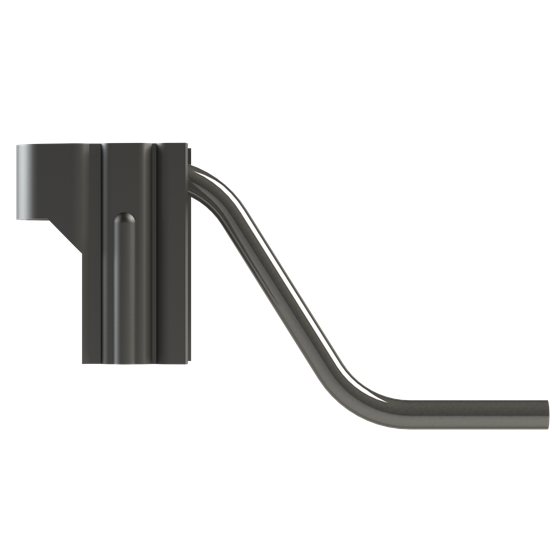

43218 TYPE S HALF HANGERS FOR STEEL BEAMS 7-S 6" X 90 DEG

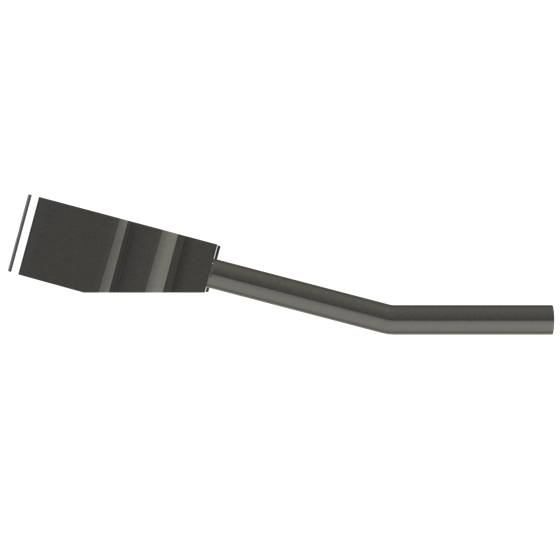

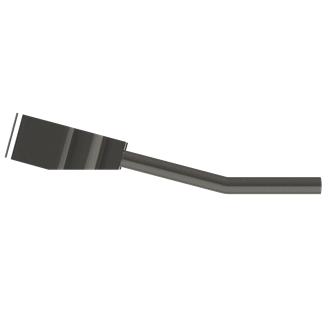

43224 TYPE S HALF HANGERS FOR STEEL BEAMS 8-S 6" X 15 DEG

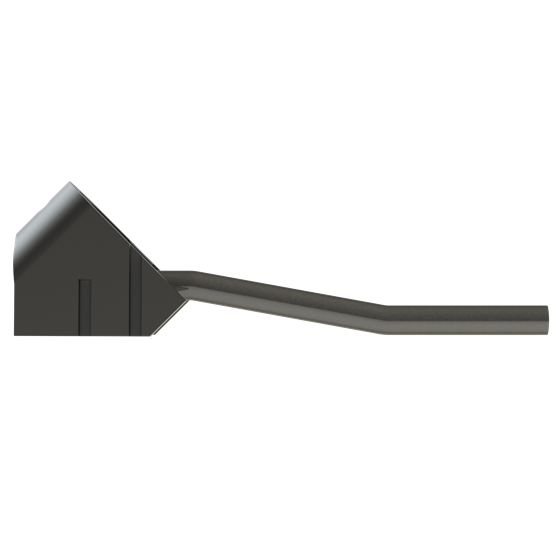

43214 TYPE S HALF HANGERS FOR STEEL BEAMS 1-AS 6" X 45 DEG

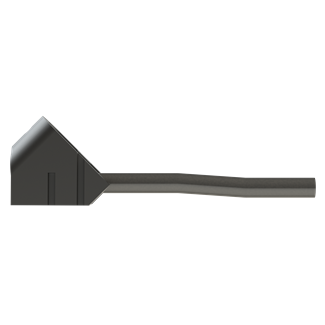

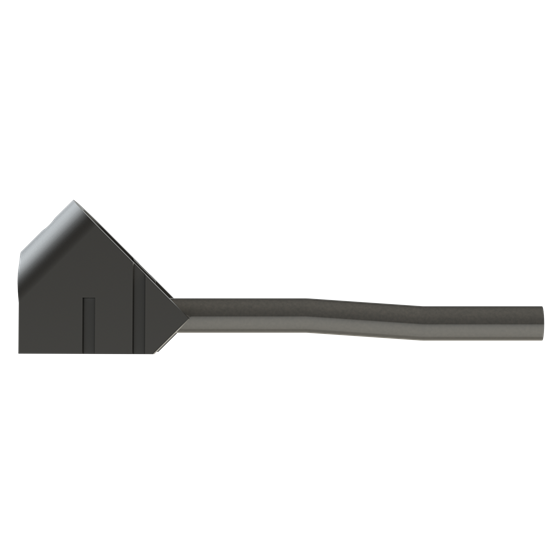

43215 TYPE S HALF HANGERS FOR STEEL BEAMS 4-AS 6" X 45 DEG

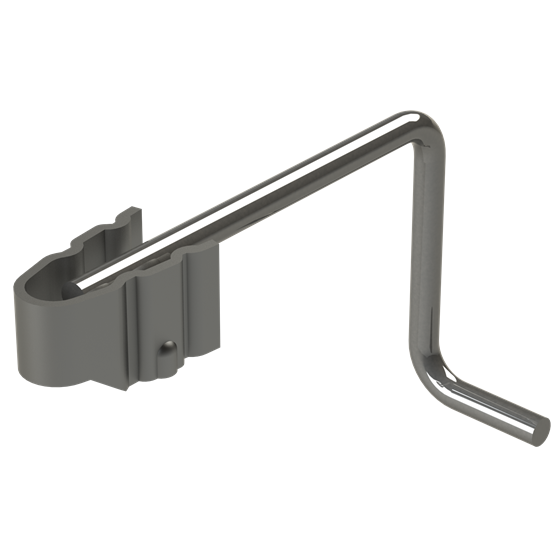

100145 TYPE P PRECAST HALF HANGER EMBEDS 1-PR 6" X 4" X 2" X 90 DEG

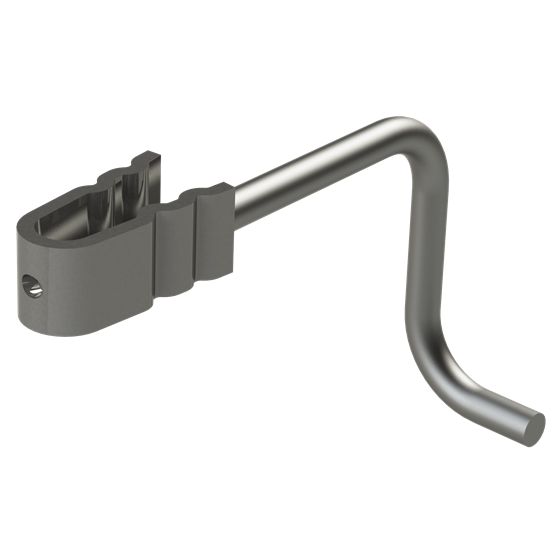

105590 TYPE P PRECAST HALF HANGER EMBEDS 4-PR 6" X 4" X 2" X 90 DEG

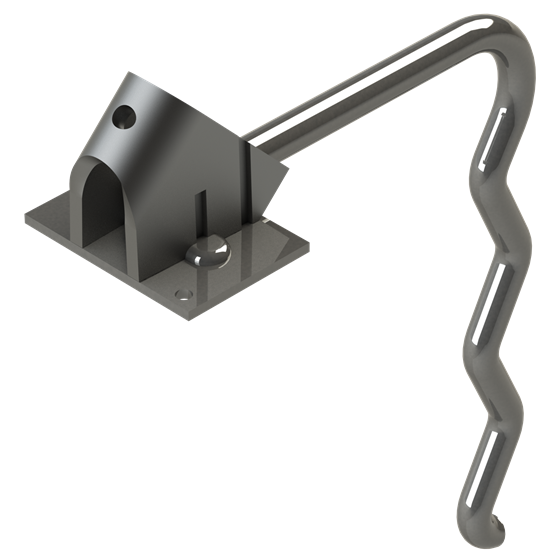

43213 TYPE P PRECAST HALF HANGER EMBEDS 4-AP 6" X 8" X 45 DEG

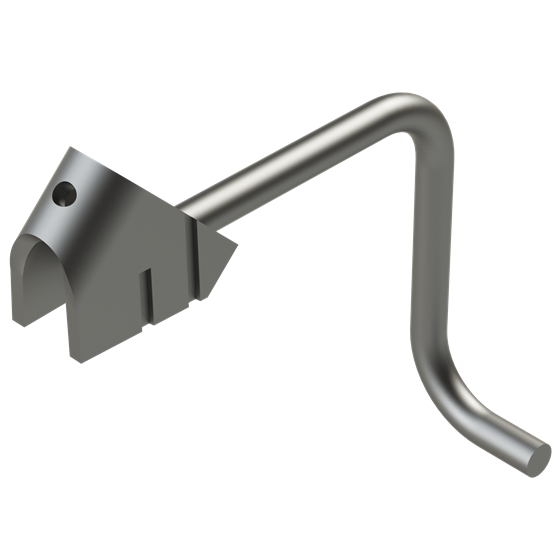

105579 TYPE P PRECAST HALF HANGER EMBEDS 4-APR 12" X 4" X 2" X 45 DEG
105580 TYPE P PRECAST HALF HANGER EMBEDS 4-APR 6" X 4" X 2" X 45 DEG

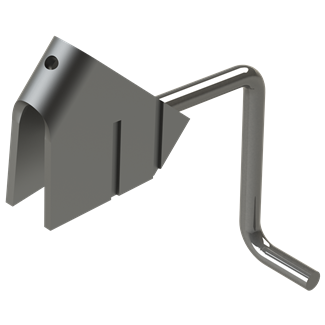

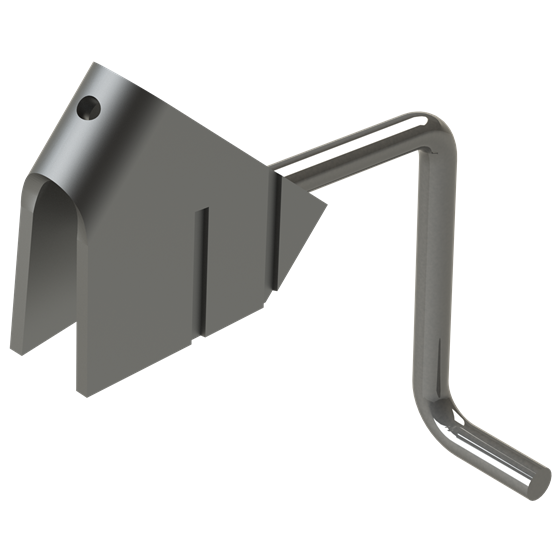

105581 TYPE P PRECAST HALF HANGER EMBEDS 5-APR 6" X 4" X 2" X 45 DEG
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
