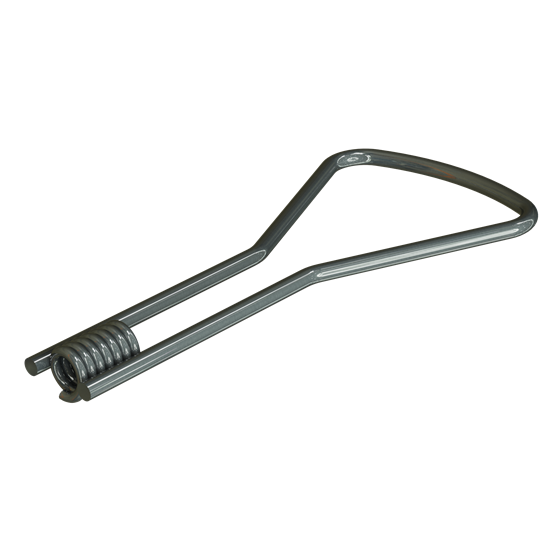

B18 - Single Flared Coil Loop Insert

Accessories | Wall Forming Accessories

Dayton
The load carrying capacity of any cast-in-place concrete insert is largely dependent upon the ability of the insert to draw upon the tensile strength of the mass of concrete within which it is embedded. The B18 Single Flared Coil Loop Insert makes effective use of this principle by increasing the depth and width of concrete embedment. B18 inserts are available with an optional B3 Screw-on Coil for use with the B30 Screw-on Plastic Cone which acts to set the insert back from the face of the concrete. Minimum spacing between inserts is twice the corner distance.

Pricing Information/Unit Sizes

Product Code Packaging
44250 SINGLE FLARED 1/2" X 4" PLAIN
105130 SINGLE FLARED 1/2" X 6" PLAIN
44317 SINGLE FLARED 3/4" X 6" PLAIN
44320 SINGLE FLARED 3/4" X 9" PLAIN
44324 SINGLE FLARED 3/4" X 12" PLAIN
44330 SINGLE FLARED 3/4" X 9" PLAIN
44334 SINGLE FLARED 3/4" X 12" PLAIN
44406 SINGLE FLARED 1" X 6" PLAIN
44410 SINGLE FLARED 1" X 9" PLAIN
44414 SINGLE FLARED 1" X 12" PLAIN
44434 SINGLE FLARED 1" X 12" PLAIN
44454 SINGLE FLARED 1-1/4" X 12" PLAIN
44464 SINGLE FLARED 1-1/2" X 12" PLAIN
44251 SINGLE FLARED 1/2" X 4" ELECTRO GALV.
44318 SINGLE FLARED 3/4" X 6" ELECTRO GALV.
44321 SINGLE FLARED 3/4" X 9" ELECTRO GALV.
44325 SINGLE FLARED 3/4" X 12" ELECTRO GALV.
44331 SINGLE FLARED 3/4" X 9" ELECTRO GALV.
44335 SINGLE FLARED 3/4" X 12" ELECTRO GALV.
44411 SINGLE FLARED 1" X 9" ELECTRO GALV.
44415 SINGLE FLARED 1" X 12" ELECTRO GALV.
44435 SINGLE FLARED 1" X 12" ELECTRO GALV.
44455 SINGLE FLARED 1-1/4" X 12" ELECTRO GALV.
105150 (RSA STYLE) 1/2" X 9" PLAIN (RSA)
44260 (RSA STYLE) 1/2" X 12" PLAIN (RSA)
126328 (RSA STYLE) 3/4" X 12" PLAIN (RSA)
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
