B12A - D/R Thread Bar

Accessories | Wall Forming Accessories

Dayton

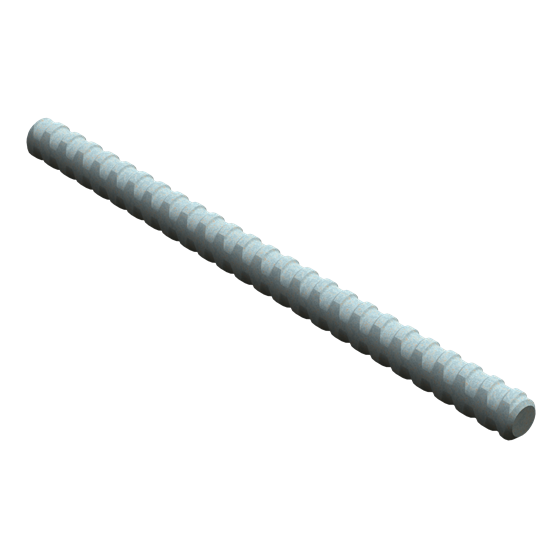

B12A - D/R Thread Bar is a high-strength 5/8" and 7/8" ductile steel with a full-length, cold-rolled contour thread. The bar's 2-1/2 threads per inch offers fast installation and stripping. Dayton Superior Thread Bar is available in 20'-0" standard lengths and can be cut to specific project requirements.
Field cutting, with Carborundum blades, is easily accomplished without thread damage.

Pricing Information/Unit Sizes

Product Code Packaging
121715 5/8" AND 7/8" DIAMETERS ONLY 5/8" - 15MM X 20'-0"; SWL=20,000 LBS
121710 5/8" AND 7/8" DIAMETERS ONLY 7/8" - 20MM X 20'-0"; SWL=32,000 LBS NON-WELDABLE
122017 5/8" - 15MM B12ACN D/R CAST HEX NUT; SWL=21,900 LBS - 97.4 KN
122018 5/8" - 15MM B12ASN D/R STEEL HEX NUT; SWL=20,130 LBS - 89.5 KN
122020 5/8" - 15MM B12AW WING NUT; SWL=21,900 LBS - 97.4 KN
F722110 5/8" - 15MM SWIVEL WING NUT; SWL=21,900 LBS - 97.4 KN
122021 5/8" - 15MM B12ASW SWIVEL WING NUT; SWL=21,900 LBS - 97.4 KN
122019 5/8" - 15MM B12AC HEX COUPLER; SWL=21,900 LBS - 97.4 KN
124683 5/8" - 15MM B11 D/R PLATE 1/2 X 5 X 5 w/0.781" HOLE
127205 5/8" - 15MM B12AWN CAST NUT WASHER; SWL=21,900 LBS - 97.4 KN
127207 5/8" - 15MM B12ANF WELDING FLANGE; SWL=21,900 LBS - 97.4 KN
146400 15MM B12AWS WATERSTOP PLAIN
127596 5/8" - 15MM B12AHC HEAVY CONES
F722001 5/8" - 15MM INTERNAL EURO CONE (B12APC)
145058 5/8" - 15MM 3/4 NOMINAL SCH 40 PVC SLEEVE 10' LONG
123603 7/8" - 20MM B12ACN D/R CAST HEX NUT; SWL=39,200 LBS - 174.4 KN
123604 7/8" - 20MM B12ASN D/R STEEL HEX NUT; SWL=26,380 LBS - 117.3 KN
123605 7/8" - 20MM B12AW WING NUT; SWL=39,200 - 174.4 KN
123606 7/8" - 20MM B12ASW SWIVEL WING NUT - SQUARE PLATE; SWL=39,200 LBS - 174.4 KN
123607 7/8" - 20MM B12AC HEX COUPLER; SWL=38,700 LBS - 172.1 KN
127597 7/8" - 20MM B12AHC HEAVY CONES
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
