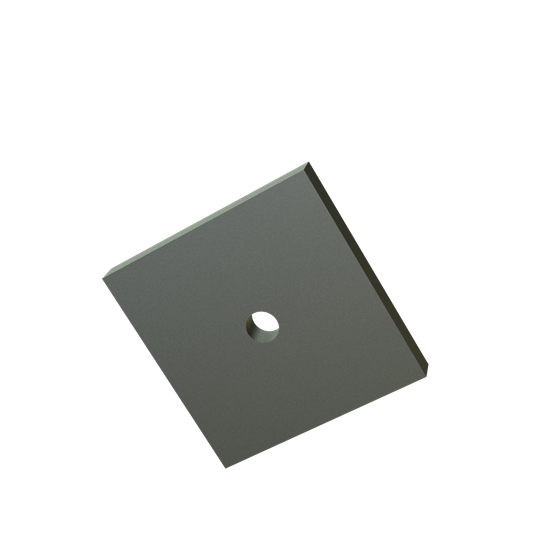

B11 - Flat Washer

Accessories | Wall Forming Accessories

Dayton
  • For use with all types and sizes of bolts and coil rod.
  • Made from carbon steel.
  • Sizes shown will effectively transfer loads to wooden strongbacks.
  • Maximum space between strongbacks should not exceed bolt diameter, plus 1/4".

Pricing Information/Unit Sizes

Product Code Packaging
46500 STANDARD 3" X 4" X 1/4" - 1/2" BOLT DIA.; ULTIMATE LOAD=13,500 LBS.
144004 STANDARD 4" X 5" X 1/4" - 3/4" BOLT DIA.; ULTIMATE LOAD=28,000 LBS.
46925 STANDARD 5" X 5" X 1/2" - 1" BOLT DIA.; ULTIMATE LOAD=37,000 LBS.
143760 STANDARD 5" X 5" X 1/2" - 1-1/4" BOLT DIA.; ULTIMATE LOAD=45,500 LBS.
47110 STANDARD 5" X 5" X 3/4" - 1-1/2" BOLT DIA.; ULTIMATE LOAD=52,5000 LBS.
46600 HEAVY 4" X 5" X 1/4" - 1/2" BOLT DIA.; ULTIMATE LOAD=17,500 LBS.
46850 HEAVY 5" X 5" X 3/8" - 3/4" BOLT DIA.; ULTIMATE LOAD=28,000 LBS.
46950 HEAVY 7" X 7" X 3/4" - 1" BOLT DIA.; ULTIMATE LOAD=76,000 LBS.
47100 HEAVY 7" X 7" X 3/4" - 1-1/4" BOLT DIA.; ULTIMATE LOAD=101,500 LBS.
47120 HEAVY 7" X 7" X 3/4" - 1-1/2" BOLT DIA.; ULTIMATE LOAD=83,000 LBS.
112910 T304 STAINLESS STEEL 4" x 4" x 1/4" - 1-1/4" BOLT DIA.; ULTIMATE LOAD=45,500 LBS.
126977 T304 STAINLESS STEEL 4" x 4" x 1/2" - 1-1/4" BOLT DIA.; ULTIMATE LOAD=101,500 LBS.
129476 CANADA ONLY (WITH NAIL HOLES) 4" X 4" X 1/4" - 1/2" BOLT DIA; CANADA ONLY
129590 CANADA ONLY (WITH NAIL HOLES) 5" X 5" X 3/8" - 3/4" BOLT DIA; CANADA ONLY
129589 CANADA ONLY (WITH NAIL HOLES) 5" X 5" X 7/16" - 1" BOLT DIA; CANADA ONLY
Specific customer pricing may be available in Dayton Access. Minimum standard packaging sizes may apply.
