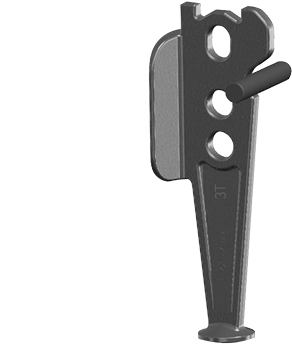

P92 FEW Forged Erection Anchors

Forged design creates a 33% higher load capacity than stamped anchors which can result in the need for fewer anchors.

  • The erection head designed for use in edge lifting of the panel eliminates spalling of concrete
  • The forged shear plate eliminates the need for a shear bar. Forged foot eliminates the need for tension bar in most cases.
  • Loads match existing P91 hardware so no new hardware is required
  • Based on Charpy Impact Test, forged anchors have twice low temperature ductility over stamped anchors
